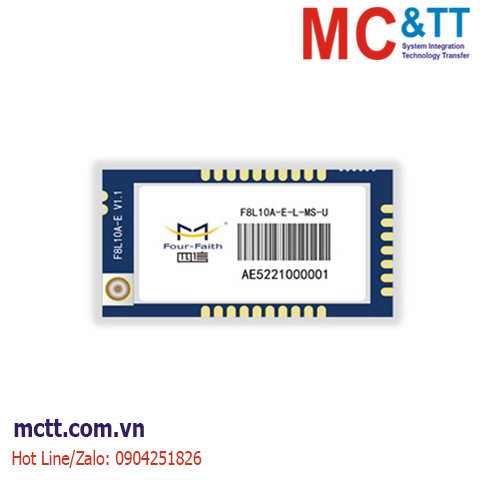

Module LoRa Four-Faith F8L10A-E

LoRa wireless modules are embedded wireless data transmission modules based on LoRa spread spectrum technology. They support Four-Faith Proprietary Protocol, LoRaWAN, CLAA, LinkWAN and other protocols, and use LoRa network to provide users with wireless data transmission functions. This product has been widely used in the M2M industry in the Internet of Things industry chain, such as smart grid, smart transportation, wireless water and gas heat meter reading, wireless automatic data collection, petrochemical and other fields.

Tính năng

  • High-performance industrial-grade CPU and wireless module
  • Low power consumption
  • Sensitive: -140dBm
  • DC: 3.3 ~ 5V
  • LoRa Wireless Module support 150MHz – 960MHz
  • LoRa Wireless Module support OTA upgrade
  • Support air wake-up function
  • Support multiple baud rates, multiple radio frequency rates
  • Flexible transmit power setting (5~20dBm, with PA model module supports 30dBm

Thông số kỹ thuật

Characteristics
Model F8L10A-N F8L10A-E
Items Contents
Frequency 433/470/868/915 MHz 433/470 MHz
Protocol Private, LoraWAN, CLAA, LinkWAN Private
Indoor Distance 1km 2km
Outdoor Distance 3.5km 11.5km
Power 20dBm(100mW) 30dBm(1W)
Sensitive -140dBm@SF12
Bandwidth 6 level(0.3, 0.6, 1.0, 1.8, 3.1, 5.5Kbps)
Serial Buffer 1K Bytes
Interfaces
Model F8L10A-N F8L10A-E
Items Contents
Serial Standard TTL
Data bit: 8
Stop bit:1, 2
Check:None, ODD, EVEN
Baud rate:1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps
Antenna SMA/Antenna pad/U.FL
Encapsulation Support double row 2.0mm pin/single row 2.54mm pin/SMT half hole
Note There may be differences in accessories and interfaces of different models, and the actual product shall prevail.
Power Supply
Model F8L10A-N F8L10A-E
Items Contents
Recommend Voltage DC 3.3V/0.5A DC 5V/500mA
Operation Voltage DC 3.3~5 V
Power Consumption
Model F8L10A-N F8L10A-E
Items Contents
Receiving <12mA@3.3V DC <12mA@5V DC
Sending <120mA@3.3V DC <330mA@5V DC
Timing Wake up <4.0uA@3.3V DC <4.0uA@5V DC
Sleep <4.0uA@3.3V DC <4.0uA@5V DC
Physical Properties
Model F8L10A-N F8L10A-E
Items Contents
Dimension 24.4x37.5x4.2 mm 24.4x45.0x4.2 mm
Weight 5.0g 8.0g
Others
Model F8L10A-N F8L10A-E
Items Contents
Operating Temperature -40~+85ºC (-40~+185ºF)
Storage Temperature -40~+125ºC (-40~+257ºF)
Relative Humidity 95% (non-condensing)

Thông tin đặt hàng

Model PA Frequency Encapsulation Antenna
F8L10A-N-L-MS-N No PA 410-510 MHz SMT No
F8L10A-N-L-MS-U No PA 410-510 MHz SMT U.FL
F8L10A-N-L-NS-S No PA 410-510 MHz Pin SMA
F8L10A-N-L-NS-U No PA 410-510 MHz Pin U.FL
F8L10A-N-H-MS-N No PA 850-935 MHz SMT No
F8L10A-N-H-MS-U No PA 850-935 MHz SMT U.FL
F8L10A-N-H-NS-S No PA 850-935 MHz Pin SMA
F8L10A-N-H-NS-U No PA 850-935 MHz Pin U.FL
F8L10A-E-L-MS-N PA 410-510 MHz SMT No
F8L10A-E-L-MS-U PA 410-510 MHz SMT U.FL
F8L10A-E-L-NS-S PA 410-510 MHz Pin SMA
F8L10A-E-L-NS-U PA 410-510 MHz Pin U.FL
