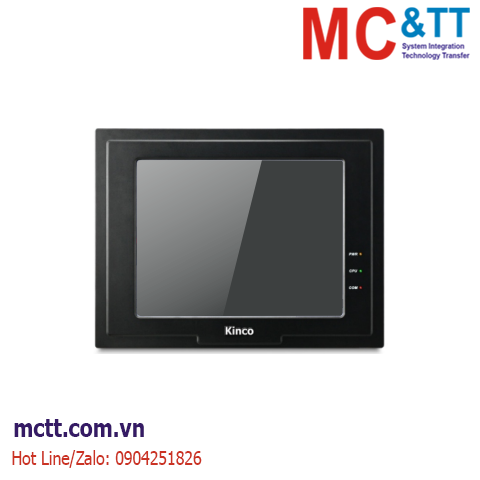

Màn hình cảm ứng HMI 15 inch Kinco F150E (3 COM, 2 USB Host, 1 SD Card, 1 Ethernet)
Tính năng
- Cortex-A9 industrial-grade CPU, Main frequency: 1GHz, Memory: up to 512M;
- 15", high brightness and high resolution display, industrial size 4:3;
- With built-in ferroelectric storage, support unlimited erasure of recipe data;
- SD card expands the storage space;
- Support access to webcams, and achieve real-time dynamic control;
- Support MPI 187.5K
Thông số kỹ thuật
|
Performance specification |
|
Display size |
15" TFT |
|
Resolution |
1024*768 pixel |
|
Display color |
16.77M color |
|
Backlight |
LED |
| Display angle of view |
88/88/88/88 (left/right/up/down) |
|
Brightness |
300cd/m2 |
|
Backlight life |
More than 50000 hours |
|
Touch Panel |
4 wire precision resistance network (surface hardness 4H) |
|
CPU |
32bit RISC Cortex-A9 1GHz |
|
Storage |
512MB DDR3 + 4GB eMMC |
| RTC & recipe storage |
Built-in RTC+32KB |
|
Extensible memory |
2 USB Host + 1 SD Card |
|
Printer port |
USB Host/ Serial port |
|
Ethernet |
LAN0: 10/100MHz self-adaption |
| Extended interface |
1*CANopen |
|
Program download |
U disk/Ethernet port |
|
COM port |
COM0: RS232/RS485/RS422, COM1: RS232/RS485/RS422, COM2: RS232 |
| Audio output |
1*Audio output |
|
Electrical specification |
|
Input power supply |
DC12V~DC28V,Built-in isolation power supply |
|
Rated power |
12W @24V DC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
| PCB coating (Yes/No) |
Yes |
|
Shell material |
Metallic |
|
Dimensions(mm) |
406.5x313.5x48.3mm |
|
Cutout size(mm) |
387.5x294.5mm |
|
Weight |
5 Kg |
|
Environment specification |
|
Operating temperature |
-10～55℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
| Panel protection grade |
IP65 compliant (4208-93) |
|
CE certification |
EN IEC61000-6-4:2007+A1:2011，EN IEC61000-6-2:2005 |
|
Software |
|
Configuration software |
Kinco DTools V3.5.3 and above version |
Thông tin đặt hàng
15", 1024×768, 16.77M Colors, 2×USB Host, 1×SD port, 3×Serial port, 1×Ethernet
Tài liệu
Datasheet
User Manual
Software
Kinco DTools V4.0.0.1(Build 230213)230215.zip
