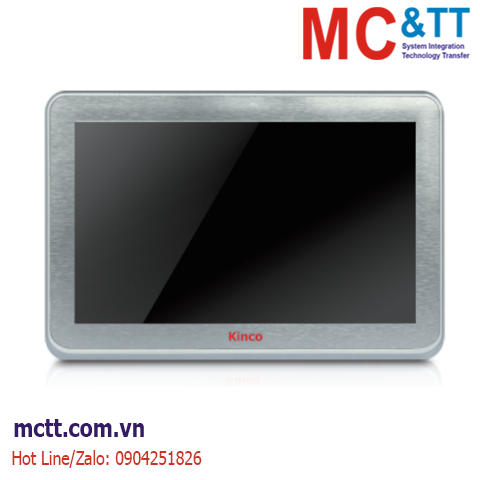

Màn hình HMI 10.1 inch chống nước IP65 Kinco F10 (2 COM, 1 USB Host)
The F10 is a Water-Resistant and Vibration-Proof HMI product that will make your application run smoothly and efficiently. This F10 HMI comes with a 65536 color display mode that gives your touch screen rich color and incomparable resolution. The F10 has an IP Rating of 65 which protects it from low pressure water jets from any direction and is totally protected dust ingress. It can allow limited ingress. With the simple, convenient and powerful configuration software, the user can master its design method and create first-class programs efficiently
Tính năng
- 10.1” Display
- 65536 True Color
- IP65 Protection, Water-Resistant and
- Vibration-Proof
- Bracket Mounting
- High-Speed Process with 800MHz CPU
- High Resolution up to 1280 x 800 Pixels
- Easy to Use
- Update Project Program by USB Disk
Thông số kỹ thuật
|
Performance specification |
|
Display size |
10.1″ TFT |
|
Resolution |
1280 x 800 pixels |
|
Display color |
65536 Colors |
|
Backlight |
LED |
|
Brightness |
250cd/m2 |
|
Backlight life |
50000 hours |
|
Touch Panel |
Four-wire precision resistance network |
|
CPU |
ARM RISC32Bit 800MHz |
|
Storage |
128MB FLASH+64MB SDRAM |
|
RTC& recipe memory |
512KB+ real-time clock |
|
Printer port |
serial port |
| Ethernet |
Does not support |
|
Program download |
USB HOST |
|
COM port |
COMO:PLC RS485-2W; COM2:PC/PLCRS232 |
|
Electrical specification |
|
Input power supply |
DC24V (Isolated power supply) |
|
Rated power |
8W |
| The input range |
DC18~DC28V |
| Allowed to lose electric |
<3ms |
| Insulation resistance |
> 50M Ω @ 500 VDC |
| Compression performance |
500VAC 1 minute |
|
Structure specification |
| The shell color |
Metal gray |
| The shell material |
Plastic ABS |
|
Overall dimensions |
250 * 167 * 28.4 mm |
|
Mounting hole dimensions |
Standard Rack Mounting |
|
The weight of the |
0.91 KG |
|
Environment specification |
|
Operating temperature |
0～45℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-10～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~25Hz (2G/30 min in X, Y and Z directions) |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Complete machine protection grade |
Meet IP65 certification (4208-93) |
|
CE certification |
Comply with EN61000-6-2:2005 and EN61000-6-4:2007 Standards |
| The FCC compatibilityment |
Complies with FCC Class A |
Thông tin đặt hàng
10.1〞16:9 display，1280*800 resolution，2 COM ports，IP65,800M CPU
