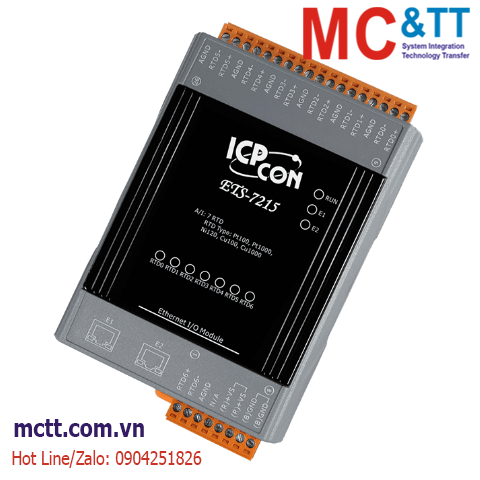

Module Ethernet Web Server + Modbus TCP 7 kênh nhiệt độ RTD ICP DAS ETS-7215 CR
Features
- Support for Http/https Web Server
- Enhanced DoS Protection
- Support for Modbus/TCP Security
- Support for MQTT (optional TLS)
- Support for 802.1Q and 802.1p Priority Tagging
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- Support Power-on and Safe Value
- I/O Pair Connection
- Built-in I/O
- Fast Boot (< 5 Seconds)
Introduction
The ETS-7215 is specifically designed for long-distance RTD measurement. It features automatic compensation for three-wire RTD regardless of the length of wires and provides open wire detection for RTD measurement. The ETS-7215 offers 7 channels, each of which could be connected with different kinds of RTD (Pt100, Pt1000, Ni120, Cu100, Cu1000). The ETS-7215 supports MQTT, Rest API, CoAP, LwM2M, and Modbus protocols for connecting with various digital sensors in Industrial Internet of Things (IIoT) applications. Also, The ETS-7215 is fully RoHS-compliant and has qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.
ETS-7215 provides an easy-to-use and intuitive web interface that allows users to implement IF-THEN-ELSE control logic with just a few clicks; no programming is required. The built-in IF-THEN-ELSE logic engine executes the automation logic in a stable and efficient manner. It also provides functions for mathematical operations.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Click to view the Introduction of https://mctt.vn/icp-das-ets-7200
Specifications
| Software |
| Function |
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation
• I/O channel monitoring and control
• Timer operation
• Schedule operation
• Internal Register operation |
| Built-in Web Server |
Yes |
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet, I/O |
| Analog Input |
| Channels |
7 (Differential) |
| Type |
RTD (2-wire, 3-wire) |
| Sensor Type |
Pt100, Pt1000, Ni120, Cu100, Cu1000 |
| Resistance Measurement |
3.2 kΩ (max.) |
| Resolution |
16-bit |
| Accuracy |
±0.05% |
| Sampling Rate |
12 Hz (total channels) |
| Input Impedance |
>1M Ω |
| Overvoltage Protection |
+120 VDC |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes |
| 3-wire RTD Lead Resistance Elimination |
Yes |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass |
Yes |
| Access Control |
ID, Password and IP Filter |
| Protocol |
Modbus TCP, Modbus TCP/TLS, Modbus UDP, MQTT, Rest API, CoAP,
LwM2M, SNMP, SMTP, SNTP, HTTP/HTTPS |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
3.0 W (max.) |
| Powered from PoE |
Yes, IEEE 802.3af, Class 2 |
| Powered from Terminal Block |
+12 to +48 VDC |
| Mechanical |
| Dimensions (mm) |
72 x 120 x 38 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ETS-7215 CR |
Secure Ethernet I/O Module with 2-port Ethernet Switch and 7-ch RTD Input (RoHS) |
