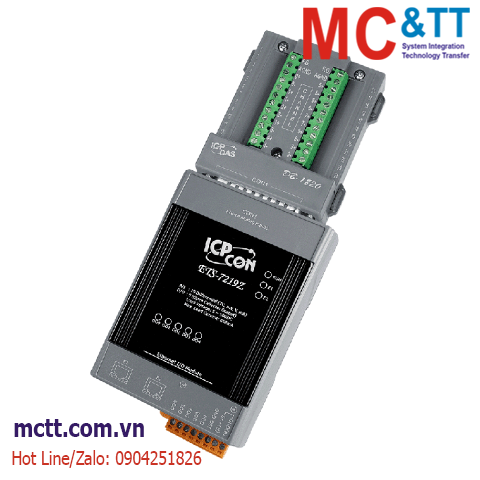

Module Ethernet Web Server + Modbus TCP 10 kênh AI + 3 kênh DO ICP DAS ETS-7219Z/S CR
Features
- Support for Http/https Web Server
- Enhanced DoS Protection
- Support for Modbus/TCP Security
- Support for MQTT (optional TLS)
- Support for 802.1Q and 802.1p Priority Tagging
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- Support Power-on and Safe Value
- I/O Pair Connection
- Built-in I/O
- Thermocouple Input: 10 Channels
- DO: 3 Channels
- Fast Boot (< 5 Seconds)
Introduction
The ETS-7219Z/S is specifically designed for extremely accurate thermocouple measurement and features automatic coldjunction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. Current input and voltage input are both supported. Another feature is that its ten input channels can be individually configured for different kinds of analog input. Open thermocouple detection and ESD/EFT/Surge protection mechanisms are also included. The six/five digital output channels can be set as alarm outputs with short-circuit protection and overload protection.
The ETS-7219Z/S supports MQTT, Rest API, CoAP, LwM2M, and Modbus protocols for connecting with various digital sensors in Industrial Internet of Things (IIoT) applications.
ETS-7219Z/S provides an easy-to-use and intuitive web interface that allows users to implement IF-THEN-ELSE control logic with just a few clicks; no programming is required. The built-in IF-THEN-ELSE logic engine executes the automation logic in a stable and efficient manner. It also provides functions for mathematical operations.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Click to view the Introduction of https://mctt.vn/icp-das-ets-7200
Specifications
| Software |
| Function |
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation
• I/O channel monitoring and control
• Timer operation
• Schedule operation
• Internal Register operation |
| Built-in Web Server |
Yes |
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
Run, Ethernet, I/O |
| Analog Input |
| Channels |
10 (Differential) |
| Type |
Voltage
Current
Thermocouple |
| Stable and Consistent Temperature Output |
Yes |
| Range |
±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V
±20 mA, 0 to 20 mA, 4 to 20 mA (Requires Optional External 125 Ω Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, and LDIN43710) |
| Resolution |
16-bit |
| Accuracy |
±0.1% of FSR or better |
| Sampling Rate |
10 Hz (total channels) |
| Input Impedance |
>300 kΩ |
| Overvoltage Protection |
240 Vrms |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes |
| Isolation |
±400 VDC, Virtual Channel to Channel Isolation |
| Digital Output |
| Channels |
3 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+5 to +50 VDC |
| Load Current |
650 mA/channel |
| Overvoltage Protection |
+60 VDC |
| Overload Protection |
1.4 A |
| Short-circuit Protection |
Yes |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass |
Yes |
| Access Control |
ID, Password and IP Filter |
| Protocol |
Modbus TCP, Modbus TCP/TLS, Modbus UDP, MQTT, Rest API, CoAP,
LwM2M, SNMP, SMTP, SNTP, HTTP/HTTPS |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
3.4 W (max.) |
| Powered from PoE |
Yes, IEEE 802.3af, Class 2 |
| Powered from Terminal Block |
+12 to +48 VDC |
| Mechanical |
| Dimensions (mm) |
76 x 120 x 38 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ETS-7219Z/S CR |
Secure Ethernet I/O Module with 2-port Ethernet Switch, Universal 10-ch AI, 3-ch DO (RoHS)
Includes DB-1820 Daughter Board |
