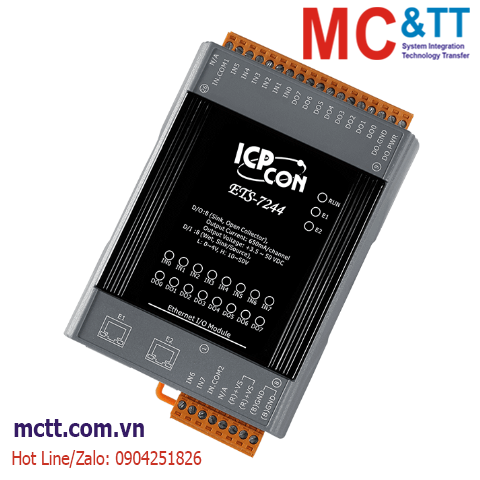

Module Ethernet Web Server + Modbus TCP 8 kênh DI + 8 kênh DO ICP DAS ETS-7244 CR
Features
- Support for Http/https Web Server
- Enhanced DoS Protection
- Support for Modbus/TCP Security
- Support for MQTT (optional TLS)
- Support for 802.1Q and 802.1p Priority Tagging
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog with Power-on and Safe Value
- I/O Pair Connection
- Built-in I/O
- DI/Counter: 8 Channels
- DO: 8 Channels
- Fast Boot (< 5 Seconds)
Introduction
The ET-7244 provides 8 wet contact digital input channels and 8 sink-type digital output channels, as well as the MQTT, Rest API, CoAP, LwM2M and Modbus protocols, which are supported for connecting with a variety of digital sensors in Industrial Internet of Things (IIoT) applications. It features optical isolation for 3750 Vrms of transient overvoltage protection but doesn’t provide channel-to-channel isolation. Each input channel can be used as a 32-bit counter and each output channel can drive 300 mA load. The power-on value and safe value of digital output channel are programmable. It can safely be used in applications where hazardous voltages are present.
ETS-7244 provides an easy-to-use and intuitive web interface that allows users to implement IF-THEN-ELSE control logic with just a few clicks; no programming is required. The built-in IF-THEN-ELSE logic engine executes the automation logic in a stable and efficient manner.It also provides functions for mathematical operations and scheduling.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Click to view the Introduction of https://mctt.vn/icp-das-ets-7200
Specifications
| Software |
| Function |
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation
• I/O channel monitoring and control
• Timer operation
• Schedule operation
• Internal Register operation |
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
Run, Ethernet, I/O |
| Digital Input/Counter |
| Channels |
8 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+10 ~ +50 VDC |
| OFF Voltage Level |
+4 VDC (max.) |
| Max. Counts |
4,294,967,295 (32-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Input Impedance |
10 kΩ |
| Overvoltage Protection |
+70 VDC |
| Digital Output |
| Channels |
8 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+ 3.5 ~ + 50 VDC |
| Load Current |
650 mA/channel at 25°C
Direct Drive Power Relay Module |
| Overvoltage Protection |
+60 VDC |
| Overload Protection |
1.4 A |
| Short-circuit Protection |
Yes |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass |
Yes |
| Access Control |
ID, Password and IP Filter |
| Protocol |
Modbus TCP, Modbus TCP/TLS, Modbus UDP, MQTT, Rest API, CoAP,
LwM2M, SNMP, SMTP, SNTP, HTTP/HTTPS |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
3.3 W (max.) |
| Powered from PoE |
Yes, IEEE 802.3af, Class 2 |
| Powered from Terminal Block |
+12 ~ +48 VDC |
| Mechanical |
| Dimensions (mm) |
76 x 120 x 42 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ETS-7244 CR |
Ethernet I/O Module with 2-port Ethernet Switch, 8-ch DI, 8-ch DO (RoHS) |
