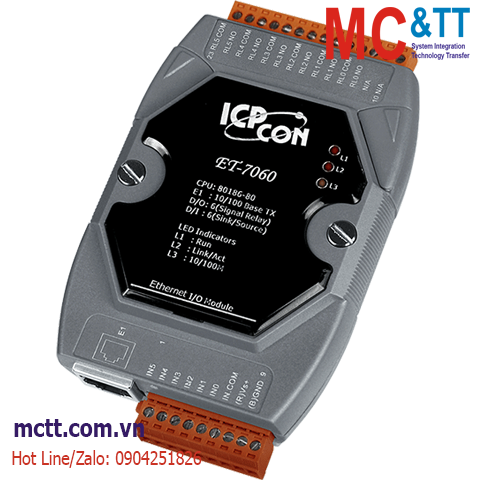

Module Ethernet Modbus TCP 6 kênh  DI+6 kênh đầu ra Relay ICP DAS ET-7060 CR

Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • I/O Pair Connection
  • Built-in I/O
    • DI/Counter: 6 Channels
    • Power Relay: 6 Channels

Introduction

The ET-7060 provides 6 wet contact digital input channels and 6 form A electromechanical relays. It features optical isolation for 3000 VDC of transient overvoltage protection and doesn't have channel-to-channel isolation. Each input channel can be used as a 32-bit counter. The power-on value and safe value of the relay are programmable. Note: When inductive loads are connected to the relays, a large counter electromotive force may occur when the relay actuates because of the energy stored in the load. These flyback voltages can severely damage the relay contacts and greatly shorten the relay life. Limit these flyback voltages at your inductive load by installing a flyback diode for DC loads or a metal oxide varistor for AC loads.

Applications

  • Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Specifications

Software
Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation Ethernet: 1500 VDC
I/O: 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±0.5 kV for Power Line
LED Indicators
Status Run, Ethernet
Digital Input/Counter
Channels 6
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +10 to +50 VDC
OFF Voltage Level +4 VDC (max.)
Max. Counts 4,294,967,295 (32-bit)
Frequency 500 Hz
Min. Pulse Width 1 ms
Input Impedance 10 KΩ
Overvoltage Protection +70 VDC
Relay Output
Channels 6
Type Power Relay, Form A (SPST N.O.)
Contact Rating 5 A @ 250 VAC/24 VDC (Resistive Load)
Operate Time 10 ms (max.)
Release Time 5 ms (max.)
Electrical Endurance 10^5 ops.
Mechanical Endurance 2 × 10^7 ops.
Power on Value Programmable
Safe Value Programmable
Ethernet
Ports 1 x RJ-45, 10/100 Base-TX
Security ID, Password and IP Filter
Protocol Modbus TCP, Modbus UDP
Power
Reverse Polarity Protection Yes
Consumption 2.9 W (max.)
Powered from Terminal Block +10 to +30 VDC
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 to +75°C
Storage Temperature -30 to +80°C
Humidity 10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ET-7060     CR  Ethernet I/O Module with 6-ch Power Relay and 6-ch DI (RoHS)
