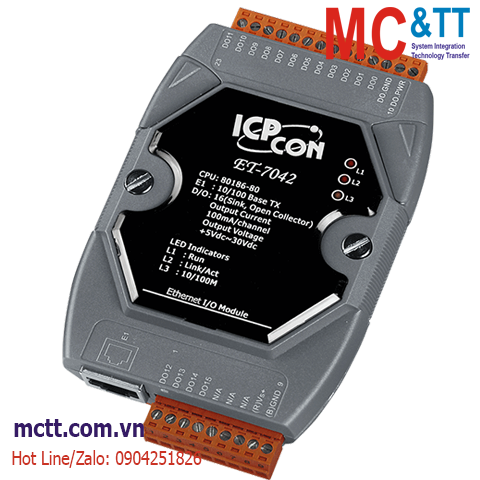

Module Ethernet Modbus TCP 16 kênh đầu ra số DO ICP DAS ET-7042 CR

Chia sẻ:
Mã sản phẩm: ET-7042
Thương hiệu: ICP DAS
Tình trạng:

Ethernet I/O Module with 16-ch DO

Liên hệ
Mô tả

Module Ethernet Modbus TCP 16 kênh đầu ra số DO ICP DAS ET-7042 CR

Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • I/O Pair Connection
  • Built-in I/O
    • DO: 16 Channels

Introduction

The ET-7042 provides 16 sink-type digital output channels. It features optical isolation for 3750 VDC of transient overvoltage protection and doesn't have channel-to-channel isolation. The power-on value and safe value of the digital output channel are programmable. In some industrial applications, the user can connect the output channel of ET-7042 to the RM series relay module to switch inductive loads.

Applications

  • Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Specifications

Software
Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation Ethernet: 1500 VDC
I/O: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±0.5 kV for Power Line
LED Indicators
Status Run, Ethernet
Digital Output
Channels 16
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +5 to +30 VDC
Load Current 100 mA/channel at 25°C
Direct Drive Power Relay Module
Power on Value Programmable
Safe Value Programmable
Ethernet
Ports 1 x RJ-45, 10/100 Base-TX
Security ID, Password and IP Filter
Protocol Modbus TCP, Modbus UDP
Power
Reverse Polarity Protection Yes
Consumption 2.7 W (max.)
Powered from Terminal Block +10 to +30 VDC
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 to +75°C
Storage Temperature -30 to +80°C
Humidity 10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ET-7042     CR  Ethernet I/O Module with 16-ch DO (RoHS)
