Mô tả

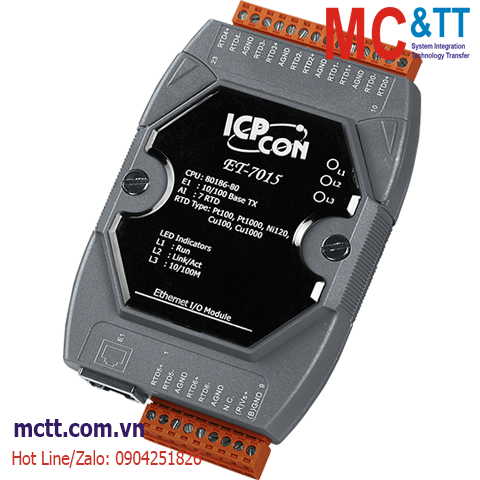

Module Ethernet Modbus TCP 7 kênh đầu vào RTD ICP DAS ICP DAS ET-7015 CR


  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Built-in I/O
    • RTD Input: 7 Channels


The ET-7015 is specifically designed for long-distance RTD measurement. It features automatic compensation for three-wire RTD regardless of the length of wires and provides open-wire detection for RTD measurement. The ET-7015 offers 7 channels, each of which could be connected with different kinds of RTD (Pt100, Pt1000, Ni120, Cu100, Cu1000). Also, the ET-7015 is fully RoHS-compliant and has qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.


  • Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.


Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
2-way Isolation Ethernet: 1500 VDC
I/O: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±0.5 kV for Power Line
LED Indicators
Status Run, Ethernet
Analog Input
Channels 7 (Differential)
Type RTD (2-wire, 3-wire)
Sensor Type Pt100, Pt1000, Ni120, Cu100, Cu1000
Resistance Measurement 3.2 KΩ (max.)
Resolution 16-bit
Accuracy ±0.05%
Sampling Rate 12 Hz (total channels)
Input Impedance >1M Ω
Common Mode Rejection 150 dB (min.)
Normal Mode Rejection 100 dB
Overvoltage Protection +120 VDC
Individual Channel Configuration Yes
Open Wire Detection Yes
3-wire RTD Lead Resistance Elimination Yes
Zero Drift ±0.5 μV/°C
Span Drift ±20 μV/°C
Ports 1 x RJ-45, 10/100 Base-TX
Security ID, Password and IP Filter
Protocol Modbus TCP, Modbus UDP
Reverse Polarity Protection Yes
Consumption 2.2 W (max.)
Powered from Terminal Block +10 to +30 VDC
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail mounting
Operating Temperature -25 to +75°C
Storage Temperature -30 to +80°C
Humidity 10 to 90% RH, Non-condensing




Ordering Information

ET-7015     CR  Ethernet I/O Module with 7-ch RTD Input (RoHS)
