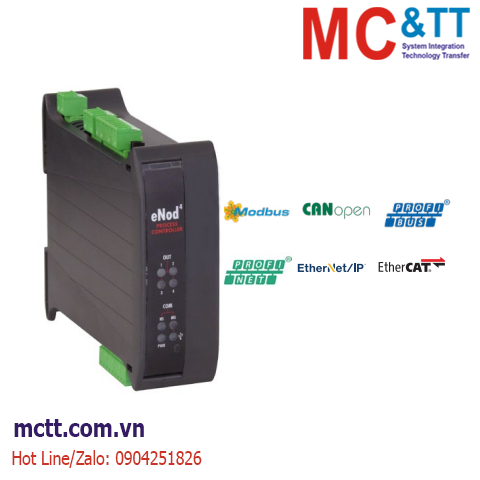

Bộ chuyển đổi tín hiệu Strain Gauge 4/6 Wire sang tương tự Lorenz eNod4-T DIN

Bộ chuyển đổi tín hiệu Strain Gauge 4/6 Wire sang tương tự Lorenz eNod4-T DIN

• Signal processing for up to 8 strain gauge load cells
• 4- or 6-wire technology
• Compact housing for easy DIN rail mounting
• Certified according to OIML R76
• Programmable digital filters
• 2 digital inputs (4 for IO+ version) and 4 digital outputs
• Analog output 0 ... 10V or 4 ... 20 mA (version IO+)
• USB connection for PC and RS485 for HMI (Human Machine Interface) eNodTouch
• EtherNet version with integrated web server for easy operation and remote monitoring

Type:	eNod4-T DIN
Approval:
Description:	Digital Measuring Amplifier for Strain Gauge Sensors in 4- or 6-Wire Technology for DIN Rail Mounting, certified according to OIML R76, with Digital Inputs and Outputs, Voltage Output or Current Output, 8 parallel Sensor Connections, parameterizable Digital Filters, RS485 Interface, USB Port for Parameterization via PC, Dual Port EtherNet for PLC Connection and Communication Protocols Modbus-TCP, Profinet, Ether-CAT or EtherNet/IP.
PDF Datasheet:	081082b_eNod4-T-DIN_en.pdf
PDF Operation Manual:	-
