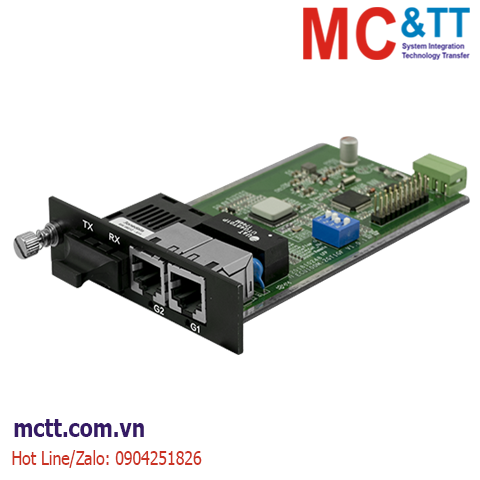

Card chuyển đổi quang điện 2 cổng Ethernet + 1 cổng quang 3Onedata ECU100-2T1F
ECU100 series are 100M/Gigabit industrial fiber converter unmanaged daughter cards. The series include five types of products and provide 100M copper port, 100M fiber port, Gigabit copper port, Gigabit fiber port and Gigabit SFP slot. It adopts slide-in mounting. And the daughter card could be used with the media converter management card, media converter rack, media converter.
The DIP switch could implement flow control. The 1 copper port + 1 fiber port products support LFP. When the LFP function is turned on and the port has link failures, the LFP indicator would be on to send alert, offering quick troubleshooting on the scene. Hardware adopts low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
Tính năng
- Support up to 1 100M copper port, 1 100M fiber port, 2 Gigabit copper ports or 2 Gigabit fiber ports
- Input voltage 5VDC
- Support -40~75℃ wide operating temperature range
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control |
|
Interface |
Copper port: 10/100Base-T(X) or 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
1×9 fiber port: 100Base-FX or 1000Base-FX
SFP slot: 1000Base-X, SFP slot |
|
Indicator |
STA Running Indicator, Port Indicator, LFP Indicator(1 copper port 1 fiber port product only) |
|
Switch Property |
Transmission mode: store and forward
Switch time delay: ＜10μs
100M Products:
l MAC address: 2K
l Packet buffer size: 0.75M
l Backplane bandwidth: 0.8G
Gigabit Products:
l MAC address: 8K
l Packet buffer size: 1M
l Backplane bandwidth: 14G |
|
Power supply |
Input voltage: 5VDC |
|
Power consumption |
No-load: ≤1.5W@5VDC
Full-load: ≤2.0W@5VDC |
|
Working environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
|
Physical Characteristic |
Installation: slide-in mounting
Weight: ≤80g
Dimension (W x H x D): 84.5mm×20.0mm×122.5mm |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge)
l Air discharge: ±8kV
l Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses)
l Power supply: ±2kV
l Signal: ±1kV
IEC 61000-4-5 (Surge)
l Power supply: common mode±2kV, differential mode±1kV
l Signal: common mode ±2kV, differential mode ±1kV |
|
Certification |
CE, FCC, RoHS certification |
Thông tin đặt hàng
|
Available Models |
100M Copper Port |
Gigabit Copper Port |
100M Fiber Port |
Gigabit Fiber Port |
Gigabit SFP |
Power supply |
|
ECU100-1T1F |
1 |
— |
1 |
— |
— |
5VDC |
|
ECU100-2T1F |
2 |
— |
1 |
— |
— |
|
ECU100-1GT1GF |
— |
1 |
— |
1 |
— |
|
ECU100-2GT1GF |
— |
2 |
— |
1 |
— |
|
ECU100-1GT2GS |
— |
1 |
— |
— |
2 |
