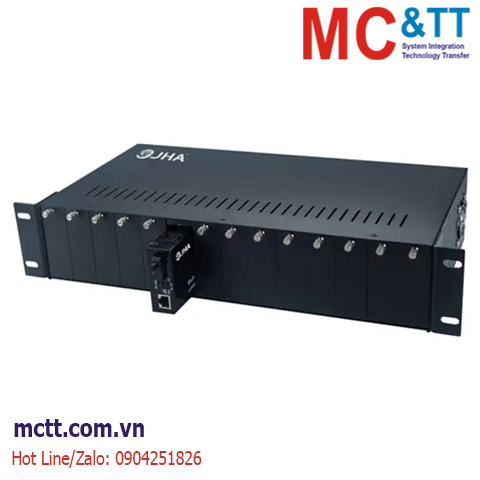

Khung giá 14 slot khe cắm bộ chuyển đổi quang điện JHA Tech JHA-E14
JHA-E14 is a 14-slot 19″ Rack-Mount Chassis System provides housing for up to 14 JHA series media converters. Designed for continuous operation, the chassis is equipped with dual cooling fans and redundant power supplies (optional). Its Plug-and-Play and Hot-Swap features allow installing/removing the converter unit without powering off the chassis. JHA-E14 rack-mount chassis eliminates the external power adapters for JHA series media converters and organizes multiple converters in a single unit, which makes it the perfect solution for managing multiple JHA series converters.
Tính năng
- Provides housing for up to 14 JHA series media converters.
- Support AC220V and DC48V two power supply, suitable for a variety of work environments.
- Each card modules are hot swappable.
- Modular power supply design, easy maintenance, better shielding, preventing the normal operation of the power generated electromagnetic signal interference module group.
- Standard chassis can be installed in the engine room rack, easy to managed.
- Simultaneously inserted 14 fiber optic transceivers, each of the transceiver module can be different of rates.
- Power protection: Overvoltage protection, overcurrent protection, short circuit protection.
- All-aluminum design, sophisticated appearance, good ventilation lightweight thermal design to ensure normal and stable operation of the system.
Thông số kỹ thuật
|
Slots Provided |
14 Slots |
|
Structure |
2 U Rack mounted |
|
Power Input |
AC 85~265V 50/60Hz |
|
Power Output |
DC 5V 1A |
|
Power Configuration |
Redundant Power Supply |
|
LED Indication |
Power |
|
Max Power Consumption |
95W |
|
Operating Temperature |
-20~70℃ |
|
Working Humidity |
5%~90% |
|
Storage Temperature |
-40~70℃ |
|
Storage Humidity |
5% to 90% Non-Condensing |
|
Dimensions |
483*232*90mm(L*W*H) |
|
Certification |
CE, FCC, RoHS |
Thông tin đặt hàng
|
Model No. |
Description of Goods |
|
JHA-E14-2A |
14 Slots 2U Rack Mount Chassis for Standalone Media Converter, Dual Power, AC110-240V |
|
JHA-E14-2D |
14 Slots 2U Rack Mount Chassis for Standalone Media Converter, Dual Power, DC48V |
Tài liệu
Datasheet
