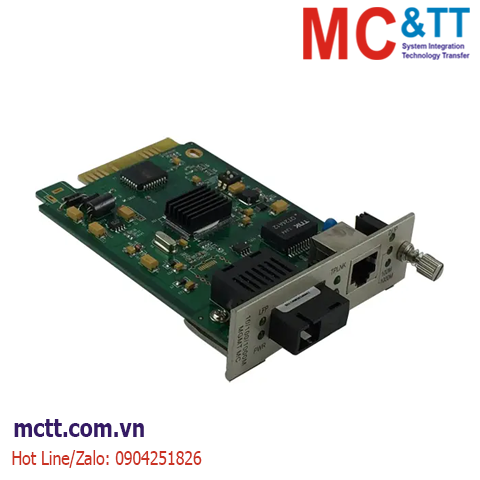

Card chuyển đổi quang điện 1 cổng GbE + 1 cổng Gigabit quang JHA Tech JHA-MG11C
JHA-MG11C is remote manageable fiber media converters offer a high price/performance ratio; cover all functions of non-manageable fiber media converter including variety of data rate SM/MM, single fiber and double fiber etc. with simple set-up and complete function management interface,it supports protocols like SNMP,WEB,TELNET and CONSOLE, and realizes the integrated management to all chassis.Support a variety of network management, including SNMP, WEB, Console and Telnet and other network management methods, can achieve the centralized network management rack. The device can be widely used in safe city, rail transportation, operator network construction and other projects.
JHA-MG11C IEEEE802.3ah OAM managed ethernet fiber media converter can supervise the real time situation of remote manageable fiber media converter and set the functions. With this system, the response speed of operator is quickened, the daily maintenance and network expenditure of the operators are reduced, and the serving quality of them is enhanced.
Tính năng
- Support 10Base-T, 100Base-T, 1000Base-T
- Meet standards IEEE802.3z, IEEE802.3u, IEEE802.3x and IEEE802.3ah.
- With high performance auto-sensing exchanging chipset meeting industrial standard, securing steady and non-traffic jam data transmission and exchanging.
- Max.2046bytes packet at store-and-forward mode, Max. 9K bytes packet at cut-through mode.
- AUTO-MDIX at electrical port, convenient for the user.
- low power consumption, low heat, standalone type with 10W special communication power supply, chassiswith dual redundant power supply.
- hot swap media converter( in card type) and management card，single fiber or double fiber(single fiber media converters should be used in pair), standalone t type or 16 slots chassis are optional
Thông số kỹ thuật
|
Protocol Standard |
Meet standards: IEEE802.3z, IEEE802.3u, IEEE802.3x and IEEE802.3ah |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission Distance |
Cat5 100m
Multimode, Dual-fiber 550m
Single Mode, Dual-fiber 20/40/60/80/100/120Km |
|
Ethernet Port |
RJ45 Ports, Connection STP / UTP Cat5/Cat5e Cooper Cable |
|
Fiber Port |
Multimode, Dual-fiber SC/FC/ST/LC (Diameter 50/125, 62.5 / 125μm)
Single Mode, Dual-fiber SC/FC/ST/LC (diameter 9/125μm ) |
|
LED Indicator |
PWR (Power Supply)
FX LINK/ACT (Optical fiber port connection)
LFP ( LFP function working )
TX LINK/ACT (Ethernet port connection)
TX SPD ( Ethernet port speed indicate )
TX DUP (Ethernet port full duplex mode) |
|
Power Supply |
Power Input: AC 110-220V / DC 48-110V
Full Load: <4 W |
|
Working Environment |
Operating Temperature: -20~70℃
Storage Temperature: -40~70℃
Storage Humidity: 5% to 90% non-condensing |
|
Certification |
CE, FCC, RoHS |
Thông tin đặt hàng
|
Model No. |
Description of Goods |
|
JHA-MG11C |
Card type fiber media converter, 10/100/1000M Multimode, Dual Fiber, 550m, SC/ST/FC/LC Connector |
