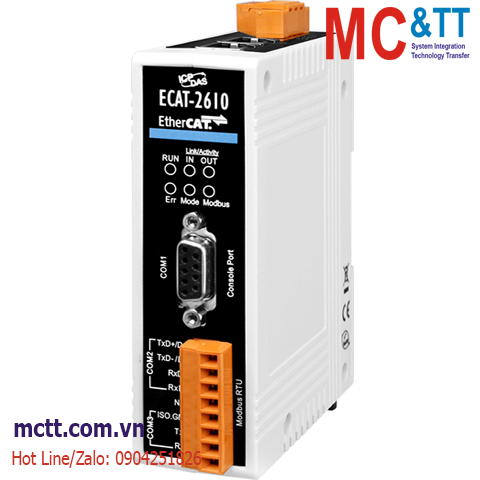

Bộ chuyển đổi EtherCAT Slave sang Modbus RTU Master ICP DAS ECAT-2610 CR
Features
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 EtherCAT connectors
- Integrate RS-232/422/485 serial device to EtherCAT
- Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
- Requires no hardware or software changes to be made to the connected device
- Compatible with all PLCs with EtherCAT support
- Performs complete serial protocol conversion, no PLC function blocks required
- Supports maximum 256 WORD Input and 256 WORD Output Data
- Supports serial port interface
- Supports Modbus RTU (Master) protocol
- Supports RS-232/422/485 Port
- Supports maximum Baud Rate 115200 bps
Introduction
Integrate your serial RS-232/422/485 based industrial devices and equipment to an EtherCAT control system without the need for any changes to the device. Just connect, configure and it's finished. The ECAT-2610 Communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices and equipment to EtherCAT. The gateway performs an intelligent protocol conversion and presents the serial data to the Master PLC/Controller as easily processed I/O data.

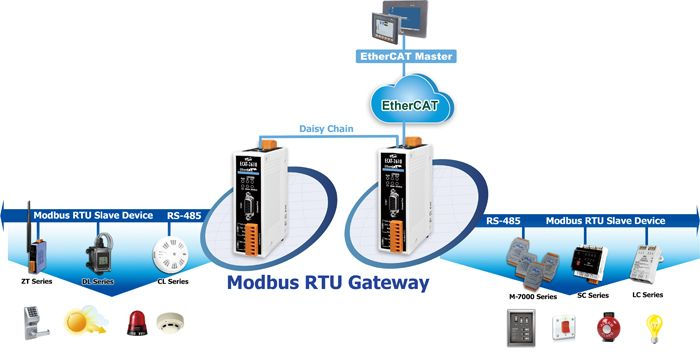

Applications
Specifications
| COM Ports |
| Ports |
1 x RS-232/422/485 |
| Protocol |
Modbus RTU (Master) |
| EtherCAT |
| Ports |
RJ-45 x 2
Distance between Stations: Max. 100 m (100BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Cycle Time |
10 ms |
| Distributed Clocks |
N/A |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+12 VDC ~ +48 VDC |
| Consumption |
0.1 A @ 24 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 127 x 99 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ECAT-2610 CR |
EtherCAT Slave to Modbus RTU Master Gateway (RoHS)
Includes CA-0915 (DB9 Male to DB9 Female Cable, 1.5 M) |
