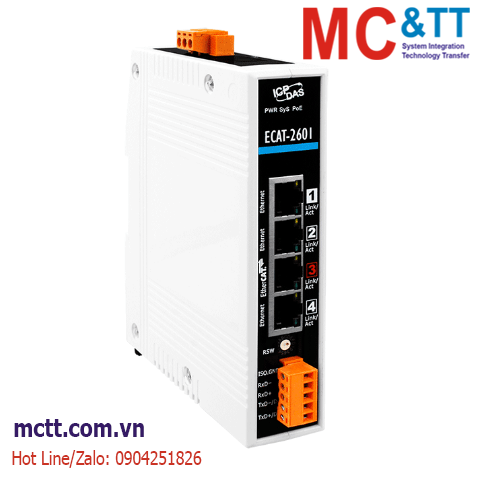

Bộ chuyển đổi EtherCAT sang Modbus/OPC UA ICP DAS ECAT-2601 CR
Features
- Built-in EtherCAT MainDevice
- Free Run mode
- Connect to SubDevice's PDO without ESI file
- Supports Third-party SubDevice
- Automatically connect to the EtherCAT SubDevice in 10 seconds after power-on
- User-defined SDO Startup Entry
- Cycle time 125us (Max.)
- Dual-stack networking (IPv4, IPv6)
- Support Modbus Server
- Supports OPC UA Server
- Built-in Web Server (HTTP/HTTPS)
Introduction
The ECAT-2601 is a proven and trusted protocol converter gateway module that allows you to seamlessly inter-connect devices between EtherCAT and Modbus/OPC UA networks. The ECAT-2600 acts as a MainDevice on EtherCAT networks, allowing I/O data to be transferred between the two networks. The ECAT-2601 provides a data exchange buffer that allows two different systems (EtherCAT and the Modbus/OPC UA) exchange data easily and faster for more diverse applications.
An OPC UA server is part of the ECAT-2601 firmware and is a secure, open and reliable mechanism for information transfer. OPC UA is used for horizontal communication between machines and vertical communication between the machine and a higher level IT system (SCADA, Cloud). All standard OPC UA clients can connect directly to the ECAT-2601 without customization, reducing the cost of integration or application software development.
Applications
Specifications
| Software |
| Function |
• Web Interface for Configuration |
| Ethernet |
| Ports |
RJ-45 x 3
2 x Distance between Stations: Max. 100 m (100BASE-TX)
1 x PoE (IEEE 802.3af, Class 2) |
| Protocol |
Modbus TCP, Modbus TCP/TLS, Modbus UDP, OPC UA, SNTP, HTTP/HTTPS, IPv4, IPv6 |
| COM Ports |
| Ports |
1 x 422/485 |
| Protocol |
Modbus RTU (Slave) |
| EtherCAT |
| Ports |
RJ-45 x 1
Distance between Stations: Max. 100 m (100BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Cycle Time |
0.125 ~ 32ms |
| Distributed Clocks |
Yes |
| Power |
| Consumption |
0.22 A @ 24 VDC |
| Powered from PoE |
IEEE 802.3af, Class 2 |
| Powered from Terminal Block |
+12 ~ 48 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
119 x 31 x 157 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ECAT-2601 CR |
Modbus/OPC UA to EtherCAT Main Device Accelerator (RoHS) |
