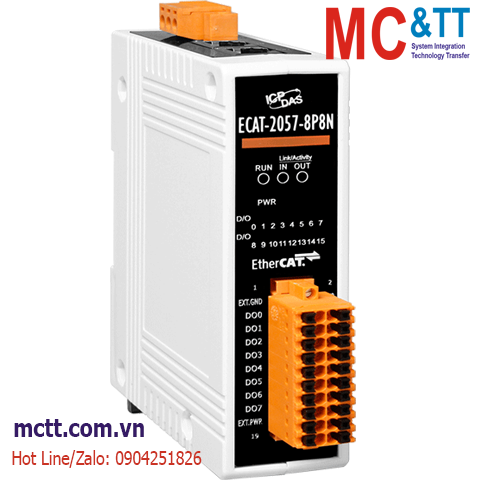

Module EtherCAT Slave 8 kênh đầu ra số DO PNP + 8 kênh đầu ra số DO NPN ICP DAS ECAT-2057-8P8N CR

Chia sẻ:
Mã sản phẩm: ECAT-2057-8P8N
Thương hiệu: ICP DAS
Tình trạng:

EtherCAT Slave I/O Module with Isolated 8-ch PNP-type and 8-ch NPN-type DO

Liên hệ
Mô tả

Module EtherCAT Slave 8 kênh đầu ra số DO PNP + 8 kênh đầu ra số DO NPN ICP DAS ECAT-2057-8P8N CR

Features

• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators for the I/O status
• Built-In digital I/O: 16 DO
• RoHS compliant
• ESD Protection 4 KV Contact for each channel

Introduction

The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2057 series is built in isolated 16 digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.

Applications

• Semiconductor Tools
• Metal Forming
• Packaging
• Injection Molding
• Assembly Systems
• Printing Machines
• Robotics

Specifications

EMS Protection
EFT (IEC 61000-4-4) Signal: ±1 kV Class A; Power: ±1 kV Class A
ESD (IEC 61000-4-2) ± 4 kV Contact for Each Channel
Surge (IEC 61000-4-5) ± 1 kV Class A
Digital Output
Channels 16
Type Open Source/Collector (Source/Sink)
Load Voltage +3.5 VDC ~ +30 VDC
Load Current 100 mA/Channel
Isolation 3750 Vrms
EtherCAT
Ports 2 x RJ-45
Distance Between Stations 100 m Max. (100Base-TX)
Data Transfer Medium Ethernet/EtherCAT cable (Min. CAT5), shielded
Cycle Time 200 us
Distributed Clocks Yes
Power
Input Range +10 VDC ~ +30 VDC
Consumption 4 W Max.
Mechanical
Casing Plastic
Dimensions (mm) 33 x 127 x 108 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ECAT-2057-8P8N     CR  EtherCAT Slave I/O Module with Isolated 8-ch DO (Source, PNP) and 8-ch DO (Sink, NPN) (RoHS)
