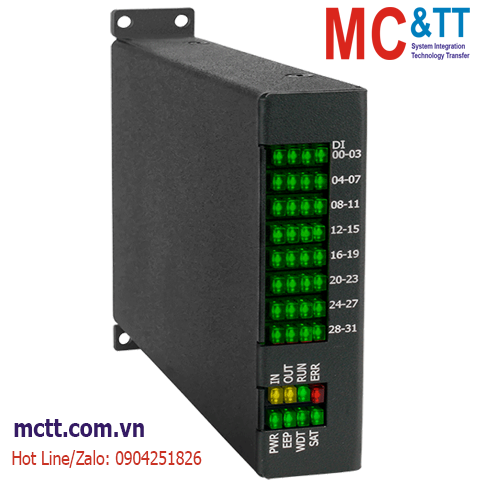

Module EtherCAT Slave 32 kênh đầu vào số DI ICP DAS EC1-P32 CR
Features
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic
- Maximum distance between Stations can be up to 100 m (100BASE-TX)
- Support daisy chain and star connection
- EtherCAT conformance test tool verified
- LED indicators for the input status
- Built-In isolated 32-channel digital inputs
- Low Pass Filter
- ESD Protection 4 KV Contact for each channel
Introduction
The EC1-P32 is an industrial slave I/O module built in 32 digital inputs. It is equipped with the EtherCAT protocol and installed by daisy chain connection that provides a more scalable system with fewer wires. Users can obtain the input and output status not only via the process data but also from its LED indicators. The EC1-P32 has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Applications
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) |
± 1 kV Class A |
| Digital Input |
| Channels |
32 |
| Type |
Wet (Sink & Source )/ Dry (Source) |
| ON Voltage Level |
Wet Contact: +10 V ~ +24 V
Dry Contact: Close to GND |
| OFF Voltage Level |
Wet Contact :+4 V Max.
Dry Contact: Open |
| Isolation |
3750 VDC |
| EtherCAT |
| Node ID |
Up to 256 |
| Distance Between Stations |
Max. 100m (100Base-Tx) |
| Data Transfer Medium |
Ethernet/EtherCAT cable(min. CAT5), shielded |
| Cycle Time |
100 us |
| Distributed Clocks |
Yes |
| Power |
| Input Range |
+24 VDC |
| Consumption |
3 W |
| Mechanical |
| Casing |
Metal with IP40 |
| Dimensions (mm) |
20 x 98 x 120 (W x L x D) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| EC1-P32 CR |
EtherCAT Slave I/O Module with Isolated 32-channel Digital Inputs (RoHS) |
