Module EtherCAT Slave 6 kênh đầu vào số DI + 6 kênh đầu ra Relay CP DAS ECAT-2060 CR

Chia sẻ:
Mã sản phẩm: ECAT-2060
Thương hiệu: ICP DAS
Tình trạng:

EtherCAT Slave I/O Module with Isolated 6-ch DI and 6-ch Relay

Liên hệ
Mô tả

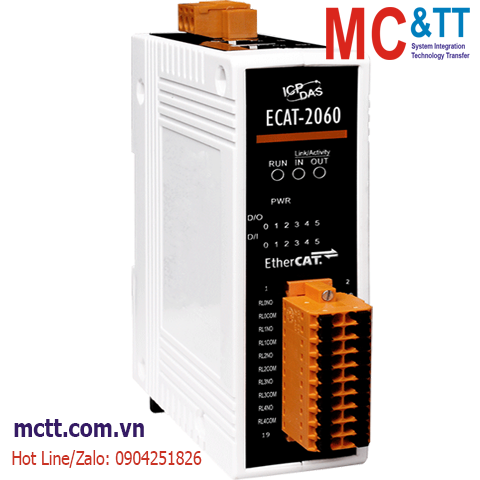

Module EtherCAT Slave 6 kênh đầu vào số DI + 6 kênh đầu ra Relay CP DAS ECAT-2060 CR

Features

• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators for the I/O status
• Built-In digital I/O: 6 DI and 6 Relay DO
• RoHS compliant
• ESD Protection 4 KV Contact for each channel

Introduction

The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2060 is built in isolated 6 digital inputs and 6 relay digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.

Applications

• Semiconductor Tools
• Metal Forming
• Packaging
• Injection Molding
• Assembly Systems
• Printing Machines
• Robotics

Specifications

EMS Protection
EFT (IEC 61000-4-4) Signal: ±1 kV Class A; Power: ±1 kV Class A
ESD (IEC 61000-4-2) ± 4 kV Contact for Each Channel
Surge (IEC 61000-4-5) ± 1 kV Class A
Digital Input
Channels 6
Type Dry+Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level Dry: Close to GND
Wet: +10 V ~ +50 V
OFF Voltage Level Dry: Open
Wet: +4 V Max.
Isolation 3750 VDC
Relay Output
Channels 6
Type Form A (SPST-NO)
Contact Rating 5 A @ 30 VDC
2 A @ 125/250 VAC (47 ~ 63 Hz)
Operate Time 10 ms Max.
Release Time 5 ms Max.
Electrical Endurance 1 x 10^5 Operations
Mechanical Endurance 2 x 10^7 Operations
EtherCAT
Ports 2 x RJ-45
Distance Between Stations 100 m Max. (100Base-TX)
Data Transfer Medium Ethernet/EtherCAT cable (Min. CAT5), shielded
Cycle Time 200 us
Distributed Clocks Yes
Power
Input Range +10 VDC ~ +30 VDC
Consumption 4 W Max.
Mechanical
Casing Plastic
Dimensions (mm) 33 x 127 x 108 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ECAT-2060     CR  EtherCAT Slave I/O Module with Isolated 6-ch DI (Dry, Wet) and 6-ch Relay (RoHS)
