Torque sensor for screw driving systems DV-14, with high torsional stiffness and a nominal torque from 2 N·m - 5000 N·m from Lorenz Messtechnik GmbH
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:
Cảm biến đo Momen xoắn loại trục không quay 1 - 5000 Nm Lorenz DV-14

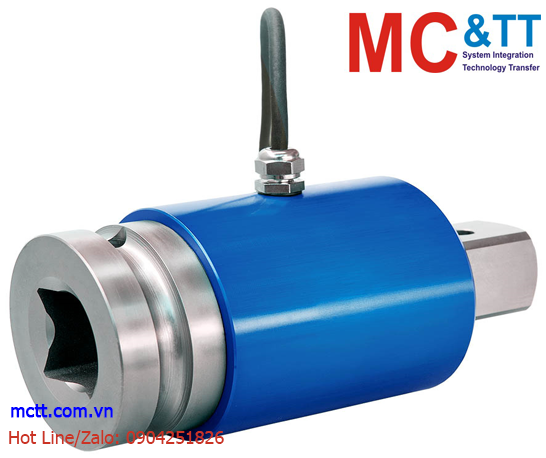

DV-14, Reaction Torque Sensor
Torque sensor for screw driving systems DV-14, with high torsional stiffness and a nominal torque from 2 N·m - 5000 N·m from Lorenz Messtechnik GmbH
Features:
DV-14 - Specifications
Type | Reaction |
Full Scale | 1 Nm |
2 Nm | |
5 Nm | |
12 Nm | |
25 Nm | |
63 Nm | |
100 Nm | |
160 Nm | |
200 Nm | |
500 Nm | |
1000 Nm | |
2000 Nm | |
5000 Nm | |
Output | 0.5 mV/V |
1 mV/V | |
Precision | ±0.10 % FS |
±0.20 % FS | |
Excitation | 2 V - 12 V DC |
Drive Side | Square Socket |
Test Side | Square Shaft |
IP Rating | IP50 |
Min Temperature | -15 °C |
Max Temperature | 55 °C |
Download
PDF Datasheet: | 080837a_DV-14_en.pdf |
---|
