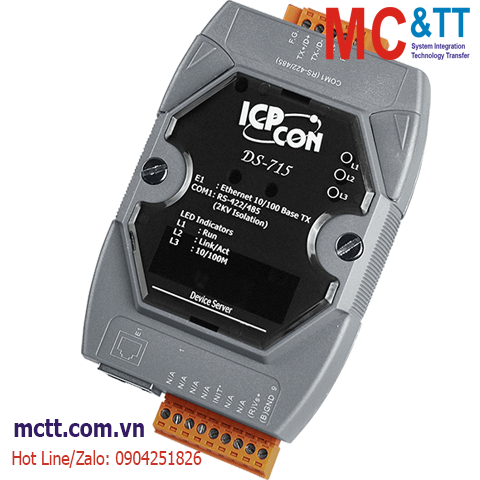

Bộ chuyển đổi 1 cổng RS-422/485 sang Ethernet ICP DAS DS-715 CR

Chia sẻ:
Mã sản phẩm: DS-715
Thương hiệu: ICP DAS
Tình trạng:

Serial-to-Ethernet Device Server with 1-port Isolated RS-422/485

Liên hệ
Mô tả

Bộ chuyển đổi 1 cổng RS-422/485 sang Ethernet ICP DAS DS-715 CR

Feature

  • Incorporate Serial Devices in an Ethernet network
  • "Virtual COM" Extend COM Ports
  • Application Modes: Virtual COM, TCP Server, TCP Client
  • VxComm Utility supports 32/64-bit Windows 7 SP1/10/2012/2016
  • High Performance Device Server
  • Watchdog Timer suitable for use in harsh environments
  • Power Reverse Polarity Protection
  • Serial Port +/-4 kV ESD Protection Circuit
  • Built-in High Performance MiniOS7 from ICP DAS
  • 10/100 Base-TX Ethernet, RJ-45 Port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
  • Low power consumption
  • Palm-Sized

Introduction

The DS-700 is a series of Serial-to-Ethernet Device Servers that are designed for linking RS-232/422/485 devices to an Ethernet network. By using the VxComm Driver/Utility, the built-in COM port of the DS-700 series can be virtualized to a standard PC COM port in Windows. By virtue of its protocol independence, a small size and flexibility, the DS-700 series meets the demands of virtually any network-enabled application.

The DS-712 is equipped with a male DB-9 connector and supports a 5-wire RS-232 port, while the DS-715 is equipped with a removable terminal block connector and supports a 4-wire RS-422 port or a 2-wire RS-485 port with 2000 Vrms isolation.

Application

• Factory Automation
• Building Automation
• Home Automation

Specifications

CPU Module
CPU 80186-80 MHz or compatible
EEPROM 16 KB; Data return: 40 years.
Flash 512 KB
SRAM 512 KB
Watchdog Timer Yes
LED Indicators
Status 1 x Power
2 x Ethernet
COM Ports
Ports 1 x RS-485/RS-422
Baud Rate 115200 bps Max.
Bias Resistor Yes, 1 KΩ
Parity None, Even, Odd, Mark, Space
None parity is required when using 8 data bits and 2 stop bits on COM1.
Data Bit 7, 8: for COM1
Stop Bit 1, 2: for COM1
Node Address 254 (max.)
Ethernet
Ports 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
Power
Reverse Polarity Protection Yes
Consumption 2.0 W
Powered from Terminal Block 12 VDC ~ +48 VDC (non-regulated)
Mechanical
Casing Plastic
Dimensions (mm) 72 mm x 124 mm x 35 mm (W x H x D)
Installation DIN-Rail or Wall mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 5 ~ 90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

DS-715     CR  Serial-to-Ethernet Device Server with 1-port Isolated RS-422/485 (RoHS)
