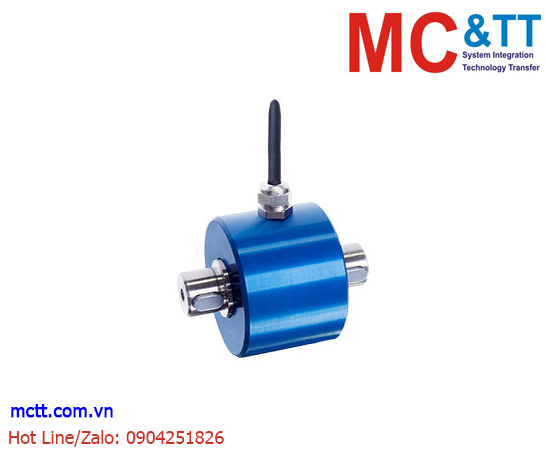

Cảm biến đo Momen xoắn loại trục không quay 1 - 100 Nm Lorenz DK-15

Chia sẻ:
Mã sản phẩm: DK-15
Thương hiệu: Lorenz Messtechnik
Tình trạng: Còn hàng

Torque transducer, non rotation DK-15, with high torsional stiffness and a nominal torque from 1 N·m - 100 N·m from Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn loại trục không quay 1 - 100 Nm Lorenz DK-15

DK-15, Reaction Torque Sensor
The DK-15 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness allow for simple handling and simple assembly.



Features:

  • Miniature
  • Keyway Ends
  • Very Short Axial Length
  • Connection: 3m Integral Cable
  • Special Version on Request

DK-15 - Specifications

Type Reaction
Full Scale 1 Nm
  2 Nm
  5 Nm
  10 Nm
  20 Nm
Output 1 mV/V
Precision ±0.20 % FS
Excitation 2 V - 12 V DC
Drive Side Round Shaft with Keyway
Test Side Round Shaft with Keyway
IP Rating IP50
Min Temperature -15 °C
Max Temperature 55 °C

Download

PDF Datasheet: 080835a_DK-15_en.pdf
