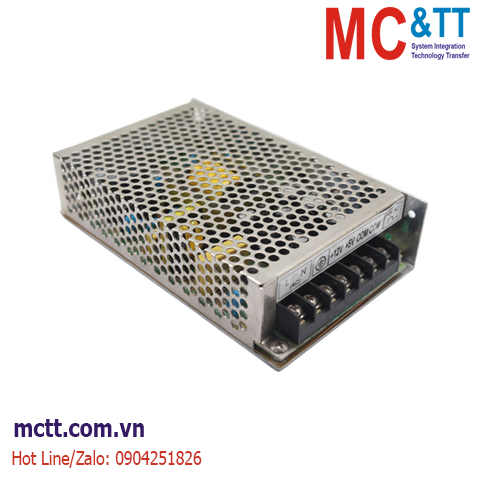

Bộ đổi nguồn tổ ong 220VAC sang 15VDC 2.5A + -15VDC 2.5A Leyu D-60C

Chia sẻ:
Mã sản phẩm: D-60C
Thương hiệu: Leyu
Tình trạng:

Bộ đổi nguồn tổ ong 220VAC sang 15VDC 2.5A + -15VDC 2.5A Leyu D-60C

Liên hệ
Mô tả

Bộ đổi nguồn tổ ong 220VAC sang 15VDC 2.5A + -15VDC 2.5A Leyu D-60C

60W Dual Output Switching Power Supply D-60 series

High efficiency, high reliability

Universal AC input /full range

100% full load burn-in test

Protections: Short circuit/ Over load/ Over voltage

LED indicator for power on

Cooling by free air convection

Fixed switching frequency at 54KHz

2 years warranty

SPECIFICATIONS
OUTPUT
Model D-60A D-60B D-60C
Output number CH1 CH2 CH1 CH2 CH1 CH2
DC Voltage 5V 12V 5V 24V 15V -15V
Rated Current 4A 3A 2A 2A 2A 1.5A
Current Range 0.8-4A 0.3-3A 0.8-3A 0.2-2A 0.5-2A 0.2-1.5A
Rated Power 56W 58W 60W
Ripple & Noise 80mVp-p 100mVp-p 80mVp-p 120mVp-p 100mVp-p 120mVp-p
Voltage Adj. Range CH1: -5%,+10% CH1: -5%,+10% CH1: -5%,+10%
Voltage Tolerance ±2% ±6% ±3% ±5% ±3% ±5%
Setup,Rise,Hold Up Time 800ms,50ms,10ms/115VAC    300ms,50ms,80ms/230VAC at full load
INPUT
Voltage Range 85~132VAC/170~264VAC selected by switch   47~63Hz; 240~370VDC
AC Current 1.8A/115V   0.9A/230V
Efficiency 74% 76% 78%
Inrush Current Cold start 25A/115V   50A/230V
Leakage Current <1mA/240VAC
PROTECTION
Over Load  105%~150% rated output power
Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed
Over Voltage  CH1: 115%~135%
Protection type: hiccup mode, auto-recovery after fault condition is removed
ENVIRONMENT
Working Temp., Humidity -10℃~+60℃; 20%~90%RH
Storage Temp., Humidity -20℃~+85℃; 10%~95%RH non-condensing
Temp. Coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage I/P-O/P: 1.5KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard Design refer to UL1012, UL60950, EN60950
EMC Standard Design refer to EN55022(CLSPR22),EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024
OTHERS
Dimension 159*97*38mm(L*W*H)
Weight 0.55Kg
Packing 45pcs/25.5Kg/1.45CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
