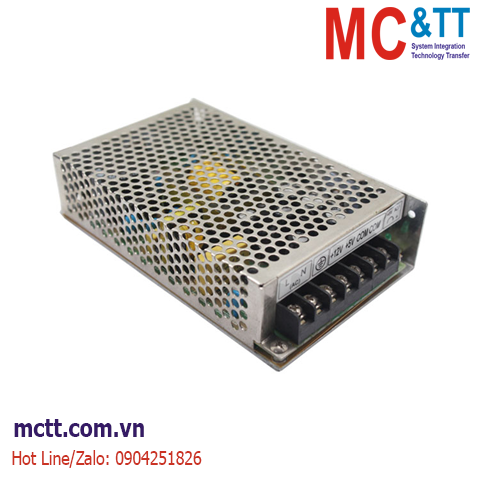

Bộ đổi nguồn tổ ong AC/DC MCTT-D-60B 58W, 5V/2A, 24V/2A
60W Dual Output Switching Power Supply D-60 series
Features:
High efficiency, high reliability
Universal AC input /full range
100% full load burn-in test
Protections: Short circuit/ Over load/ Over voltage
LED indicator for power on
Cooling by free air convection
Fixed switching frequency at 54KHz
1 years warranty
|
SPECIFICATIONS |
|
OUTPUT |
|
|
Model |
D-60A |
D-60B |
D-60C |
|
Output number |
CH1 |
CH2 |
CH1 |
CH2 |
CH1 |
CH2 |
|
DC Voltage |
5V |
12V |
5V |
24V |
15V |
-15V |
|
Rated Current |
4A |
3A |
2A |
2A |
2.5A |
2.5A |
|
Current Range |
0.3-6A |
0.2-3A |
0.3-2A |
0.2-2A |
0.3-3A |
0.2-3A |
|
Rated Power |
56W |
58W |
75W |
|
Ripple & Noise |
75mVp-p |
150mVp-p |
75mVp-p |
150mVp-p |
75mVp-p |
150mVp-p |
|
Voltage Adj. Range |
CH1: -5%,+10% |
CH1: -5%,+10% |
CH1: -5%,+10% |
|
Voltage Tolerance |
±2% |
±6% |
±2% |
±5% |
±2% |
±5% |
|
Setup,Rise,Hold Up Time |
800ms,50ms,10ms/115VAC300ms,50ms,80ms/230VACat full load |
|
|
|
|
INPUT |
|
|
Voltage Range |
85~132VAC/170~264VACselected by switch47~63Hz; 240~370VDC |
|
AC Current |
2A/115V1A/230V |
|
Efficiency |
73% |
76% |
78% |
|
Inrush Current |
Cold start 18A/115V 36A/230V |
|
Leakage Current |
<1mA/240VAC |
|
|
|
|
PROTECTION |
|
|
Over Load |
105%~150% |
|
Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed |
|
Over Voltage |
115%~135% |
|
Protection type: hiccup mode, auto-recovery |
|
|
|
|
ENVIRONMENT |
|
|
Working Temp., Humidity |
-10℃~+60℃; 20%~90%RH |
|
Storage Temp., Humidity |
-20℃~+85℃; 10%~95%RH |
|
Temp. Coefficient |
±0.03%/℃(0~50℃) |
|
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
|
|
|
|
SAFETY |
|
|
Withstand Voltage |
I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|
|
|
|
STANDARD |
|
|
Safety Standard |
Design refer to UL1012, UL60950,EN60950 |
|
EMC Standard |
Design refer to EN55022(CLSPR22),EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024 |
|
|
|
|
OTHERS |
|
|
Dimension |
159*97*38mm(L*W*H) |
|
Weight |
0.54Kg |
|
Packing |
24pcs/13.8Kg/0.75CUFT |
|
|
|
|
NOTE |
|
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ &47μparallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a finalequipment. The final equipment must be re-confirmed that it still meets EMCdirectives. |
