Mô tả

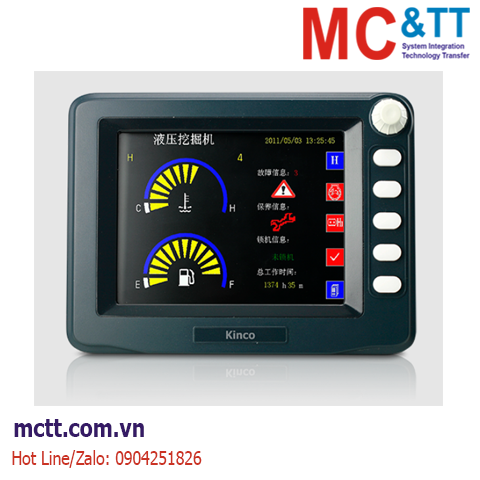

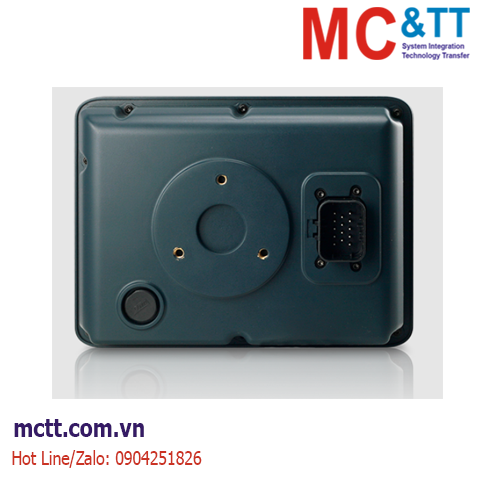

Màn hình HMI 5.7 inch Kinco CZ6 (2 COM, 1 USB Host, 1 CANopen)

Tính năng

  • Outer shell use high thermostability,high intensity,anti-uvioresistant material ensure the best performance when HMI working in the severe environment.
  • With wide range temperature LCD, working temperature can be -20°C - 60° C.
  • Highly shockproof performance.
  • Multiple serial ports,CAN port,support CANopen/CANJ1939/serials port/RS232/RS485.
  • Whole body IP65 protection.

Thông số kỹ thuật

Performance specification

 Display size

5.7" TFT


640*480 pixel

 Display color

65536 colors





 Backlight life

 More than 50000 hours


RISC Cortex-A8 800MHz


256MB Flash + 256MB RAM


Built-in RTC

 Extensible memory

1 USB Host

 Printer port

USB Host/serial port

 Program download

1*USB 2.0/ Serial port

 COM port

1*CANopen, COM0: RS485, COM2: RS232
Extended interface None

Electrical specification

Input power supply


Rated power

10W @24VDC (isolated)

Allowable loss of power


Insulation resistance

Over 50MΩ@500V DC

Hi-pot test

500V AC 1 minute

 Structure specification

PCB None of spraying
Shell color Navy Blue

 Shell material

Engineering plastic



 Cutout size(mm)



1 Kg

 Environment specification

Operating temperature


 Operating humidity

 10~90% non-condensing

 Storage temperature


 Storage humidity

 10~90% non-condensing

 Shockproof test

 10~500Hz, 30m/s², X,Y,Z direction/hour

 Cooling method

 Natural air cooling


 Degree of protection

IP65 (whole body)

CE certification

EN61000-6-4:2007+A1:2011, EN61000-6-2:2005


Configuration software

Kinco DTools V3.3 and above

Thông tin đặt hàng

  • CZ6

Tài liệu


User Manual


Kinco DTools V4.0.0.1(Build 230213)230215.zip
