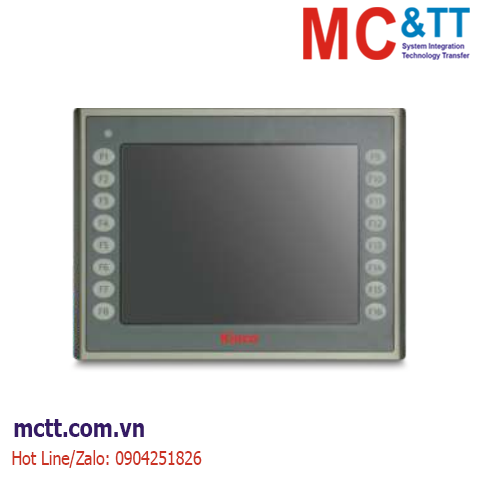

Màn hình HMI 10.4 inch Kinco CZ10 (2 COM, 1 USB Host, 2 CAN, 2 Video input)
Tính năng
- RISC Cortex-A8 800MHz CPU, faster and smoother.
- Large capacity, 256MB FLASH+256MB DDR3 RAM.
- Double CAN port design, support CANopen/CANJ1939.
- Double serial port extension, support RS232/485/422.
- Double video input, perfect for multi-channel monitoring.
- The buttons are equipped with adaptive backlight lighting, so that operation at night can be clearly seen.
- Wide temperature industrial-grade liquid crystal, working temperature -20° C ~ 70° C, full Angle of view, high brightness, visible under sunlight.
- All-metal structure body, better heat dissipation performance, better anti-vibration and anti-interference ability.
- Dual isolation circuit for power supply and serial port to minimize fault, downtime and additional service costs caused by interference.
Thông số kỹ thuật
|
Performance specification |
|
Display size |
10.4″ TFT |
|
Resolution |
640*480 pixel |
|
Display color |
65536 colors |
|
Backlight |
LED |
|
Brightness |
500cd/m2 |
|
Backlight life |
More than 50000 hours |
|
Touch Panel |
None |
| Function keys |
16 keys, programmable functions can be customized |
|
CPU |
RISC Cortex-A8 800MHz |
|
Storage |
256MB Flash + 256MB RAM |
|
RTC |
Built-in RTC |
|
Extensible memory |
1 USB Host (Max 16G) |
|
Printer port |
USB Host/Slave/serial port |
|
Program download |
1*USB 2.0/ Serial port |
|
COM port |
2*CAN, 1*RS232/RS485/RS422,1*RS232 (isolation) |
| Video input |
2*CVBS analog signal input(BNC connector) support PAL/NTSC format |
|
Electrical specification |
|
Input power supply |
DC9V~36V, Built-in isolation power supply |
|
Rated power |
12W @24V DC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
| PCB |
None of spraying |
| Shell color |
Brown |
|
Shell material |
Aluminum alloy |
|
Dimensions(mm) |
300*226*70 mm |
|
Cutout size(mm) |
281*207 mm |
|
Weight |
3.3 Kg |
|
Environment specification |
|
Operating temperature |
-20～70℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-30～80℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Degree of protection |
IP65(4280-93) |
|
CE certification |
EN61000-6-4:2007+A1:2011, EN61000-6-2:2005 |
|
Software |
|
Configuration software |
Kinco DTools V3.3 and above |
Thông tin đặt hàng
10.4", 64K TFT, 640*480 resolution, 2 CAN ports, 2 Video input
