Màn hình cảm ứng HMI 7 inch tích hợp PLC HYBRID Xpanel Cimon CM-HP07CD-DER

Chia sẻ:
Mã sản phẩm: CM-HP07CD-DER
Thương hiệu: Cimon
Tình trạng: Còn hàng

7" Xpanel Hybrid combines the Xpanel HMI + PLC-S CPU (Relay)

Liên hệ
Mô tả

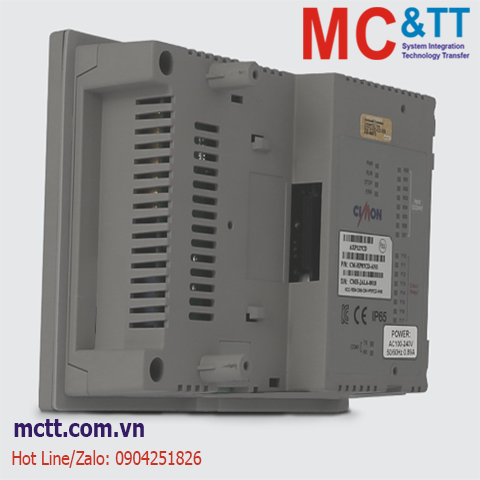

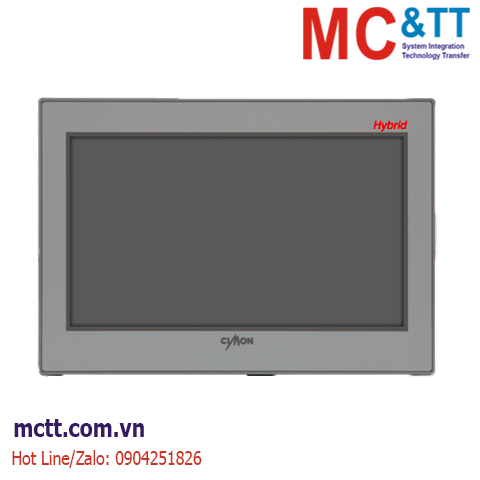

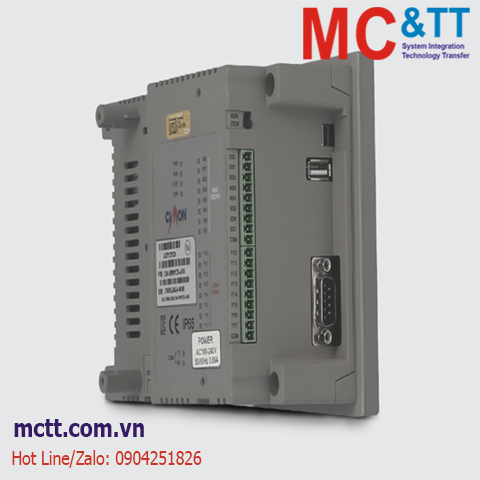

Màn hình cảm ứng HMI 7 inch tích hợp PLC HYBRID Xpanel Cimon CM-HP07CD-DER

Tính năng

  • PLC tiên tiến nhất tích hợp hoàn hảo với HMI có màn hình sắc nét và sống động
    – Lỗ treo tường VESA tiêu chuẩn 100X100mm được trang bị ở mặt sau để dễ dàng gắn vào giá đỡ VESA.
  • Có thể mở rộng với các Module PLC-S
    – Các module mở rộng PLC-S hiện có hoạt động với XPANEL Hybrid. (Tối đa 2 mô đun mở rộng PLC-S)
  • Tích hợp PLC chính hãng
    – PLC được tích hợp với HMI để hỗ trợ đầy đủ chức năng của PLC-S và XPANEL.
  • Thiết bị đầu cuối dây PLC có thể tháo rời
    – Mỗi thiết bị đầu cuối kết nối có thể tháo rời để cài đặt và bảo trì thuận tiện.
    – Cổng USB cung cấp kết nối đồng thời với XPANEL Designer và CICON Software.

Thông số kỹ thuật

HMI Part (Xpanel)

Model HP07CD-AER HP07CD-ANR HP07CD-AES HP07CD-ANS
HP07CD-DER HP07CD-DNR HP07CD-DES HP07CD-DNS
LCD Size 7 inches
LCD Type TFT Color
Color 65,536 colors
Resolution WVGA 800×480
Backlight LED
Luminance 400cd/m2
Touch Panel Resistive 4 wire
Memory 128MByte DDR2
Storage Space 128MByte SLC NAND Flash
SD Card 1 SD Slot None 1 SD slot None
COM1(HMI) RS232C/RS422/RS485
COM2(HMI) RS232C (Internal)
COM1(PLC) RS232C RS485
COM2(PLC) RS232C (Internal)
Ethernet 10/100 BaseT None 10/100 BaseT None
USB Host 1 port
Tool Port 1 USB device
Audio 1 port None 1 port None
Voltage -A: AC100-240V / -D: DC24V
Power Consumption 9.6W
OS Windows CE 6.0
Dimension(mm) 185 x 127 x 80.5
Panel Cut(mm) 177 x 119

PLC Part (PLC-S)

Item Specification Remark
Power DC 12 – 24V
Program control method Cyclic Execution, Time Driven Interrupt
I/O control method Indirect method, Directed by program instruction
Program language LD(Ladder Diagram), IL(Instruction List), SFC(Sequential Function Chart)
Data processing method 32 Bit
Instructions Sequence 55 Instruction
Application 389 Instruction
Processing speed (Sequence) 300 ns/Step
Program capacity 10K Step
Maximum I/O points 96pts / Option module + 2 PLC-S modules
Operation mode Remote Run, Remote Stop
Back-up method K address by (Latch) parameter
Total program 128
Total program (Max.128) Scan Scan, Subroutine, Cold/Hot Start initialization, Periodic Interrupts
Periodic Interrupts Maximum 15 scan program (Minimum period :10ms)
Special PID , HSC, IO Input Filter, Special Card init
Communication User Protocol(Serial) Comm. Program, MODBUS/RTU Master
Etc. SFC, FBD (Function Block Diagram)
Self-diagnosis function Detect delay of scan time, memory, I/O, Power Supply
Restart Cold, Hot Restart
Maximum expansion 1 CPU module + maximum 3 expansion modules
Data memory X 1024 pts (X0000 – X063F) Bit
Y 1024 pts (Y0000 – Y063F) Bit
M 8192 pts (M0000 – M511F) Bit
L 4096 pts (L0000 – L255F) Bit
K 4096 pts (K0000 – K255F) Bit
F 2048 pts (F0000 – F127F) Bit
T 512 pts (T0000 – T0511) Word
C 512 pts (C0000 – C0511) Word
S 100 states x 100 set (00.00 – 99.99)
D 10000 words (D0000 – D9999) Word
Z 1024 words (Call Stack : Z0000 – Z0063, Z1000 – Z1063) Word
R 16 points (Index)
High Speed Counter 16Kpps (In case of 2Ph. 2Multi. Max 4Kpps)/ 1Phase pulse Input + Direction signal
PID 32 Channels, Auto-Tuning
RTC Battery (CR2032 Backup)
Comm. Channel Standard : USB Loader, Serial 1(RS232C)/Optional : Serial 1Ch(RS485 or RS232)
Etc. Real number operation, Online edit

Thông tin đặt hàng

Hybrid Xpanel Product Line-Up

No. Model Specification
1 CM-HP07CD-DNR 7″ XPANEL + PLC(CPU,  RS232C), DC24V, Relay DI 8/DO 8, USB Loader
2 CM-HP07CD-ANR 7″ XPANEL + PLC(CPU,  RS232C), AC Free, Relay DI 8/DO 8, USB Loader
3 CM-HP07CD-DNS 7″ XPANEL + PLC(CPU,  RS485), DC24V, Relay DI 8/DO 8, USB Loader
4 CM-HP07CD-ANS 7″ XPANEL + PLC(CPU,  RS485), AC Free, Relay DI 8/DO 8, USB Loader
5 CM-HP07CD-DER 7″ XPANEL + PLC(CPU,  RS232C), DC24V, Relay DI 8/DO 8, USB Loader, Ethernet,  SD card slot
6 CM-HP07CD-AER 7″ XPANEL + PLC(CPU,  RS232C), AC FREE, Relay DI 8/DO 8, USB Loader, Ethernet,  SD card slot
7 CM-HP07CD-DES 7″ XPANEL + PLC(CPU,  RS485), DC24V, Relay DI 8/DO 8, USB Loader, Ethernet,  SD card slot
8 CM-HP07CD-AES 7″ XPANEL + PLC(CPU,  RS485), AC FREE, Relay DI 8/DO 8, USB Loader, Ethernet,  SD card slot

Tùy chọn

Expansion Modules (PLC-S)
1 CM-HP-DM DUMMY Expansion dummy for Hybrid XPANEL
2 CM-HP-EAA AIO-4 Analog module (AI 2ch, AO 2ch) for Hybrid XPANEL
3 CM-HP-EDR DI8/DO6 DI 8 pts [TR Sink/Source], DO 6 pts [relay])
  • Có thể cài đặt tối đa 2 mô-đun mở rộng PLC-S với CM-HP-DM, CM-HP-EAA, CM-HP-EDR.

Module tùy chọn

Digital I/O

No. Model Type Specification
1 CM3-SP32EDO DI-32 DI 32 pts, DC 24V
2 CM3-SP32EOT DO-32 DO 32 pts. DC 24V TR (Sink)
3 CM3-SP32EOC DO-32 DO 32 pts. DC 24V TR (Source)
4 CM3-SP16EOR DO-16 DO 16 pts, Relay Output
5 CM3-SP32EDT DI-16 / DO-16 DI 16 pts, DO 16 pts, TR (Sink)

Analog I/O & Temp. Measuring

No. Model Type Specification
1 CM3-SP04EAO AI-4 AI 4CH Current/Voltage
2 CM3-SP04EAA AIO-4 AI 2CH / AO 2CH Current Voltage
3 CM3-SP04EOAI AO-4 AI 4CH RTD
4 CM3-SP04EOAI AI 4CH TC
5 CM3-SP04EOAI AI 4CH TC & RTD MUX
6 CM3-SP04EOAI AO-4 AO 4CH Current Output
7 CM3-SP04EOAV AO 4CH Voltage Output

Module truyền thông

No. Model Type Specification
1 CM3-SP02ERS Comm. RS232C 1CH, RS422/485 1CH, MODBUS RTU Master
2 CM3-SP02ERR RS232C 2CH. MODBUS RTU Master
3 CM3-SP01EET 10/100Mbps, UDP/TCP, TCP MODBUS Master

Phụ kiện

No. Model Type Specification
1 CM0-TB32M SP32MDT Multi-Terminal Block
3 CM0-SCB15E SP32EDO, SP32EOT I/O 32 Connection Cable (1.5m)

Tài liệu

Link download

Đăng nhập
Đăng ký
