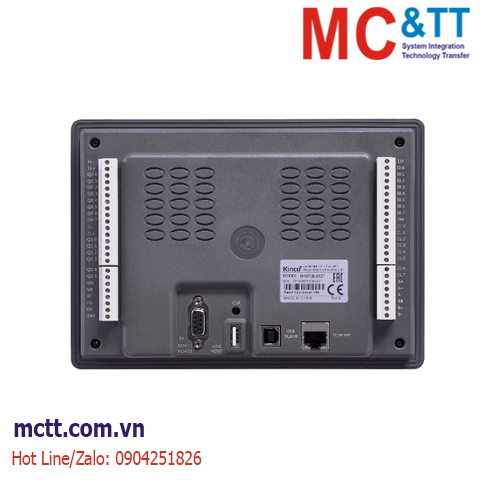

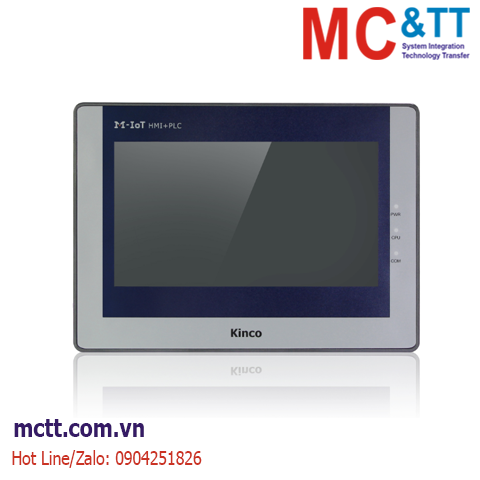

Màn hình cảm ứng HMI 4.3 inch tích hợp PLC Kinco MK043E-20DTC (9*DI, 9*DO, 2*AI TC, 2*RS485)
The MK series products are high-performance offerings from Kinco, integrating the three advantageous technologies of HMI, PLC, and IoT.
The MK series products are jointly developed on a new MCU platform, integrating the Dtools software, the KincoBuilder software and the M-IoT technology platform. They offer rich remote operation features such as remote upload/download program, remote
transparent PLC communication, VNC monitoring, and device management, providing greater value to a broad range of users.
Tính năng
Display Section(HMI)
- M-IoT: Support remote operation functions such as upload/download program, remote transparent communication(PLC), VNC monitoring, device management, etc.
- Enhanced Hardware: Industrial-grade CPU with MHz main frequency, MB Flash + MB DDR large capacity storage, support Dtools programming software.
- Standard with Ethernet interface: Simultaneously support USB extended storage, making it convenient to connect more peripherals.
Logic Control Section(PLC):
- Expansion: Support the expansion of KS modules, with options for expanding digital I/O, analog I/O, etc.
- 4 high-speed input channels: The highest frequency is 50kHz, supporting single-phase dual-phase (Up/Down), AB phase counting modes.
- 4 high-speed pulse outputs: Support PTO and PWM modes.
- 2 RS485 (PORT1 and PORT2): Support communication rates up to 115.2 kbps.
- Optional CAN Functionality: Optional support for Kinco motion control, CANopen master station, or free communication functions
Thông số kỹ thuật
| Model |
MK070E-27DRT |
MK043E-20DTC |
MK043E-27DT |
| Rated power supply |
DC24V |
DC24V |
DC24V |
| Voltage Range |
20.4~28.2VDC |
20.4~28.2VDC |
20.4~28.2VDC |
| Maximum Power |
~10W |
~8W |
~8W |
| PLC Section |
| Built-in DI/DO |
DI 12*DC24V (NPN/PNP)
DO 12*Relay |
DI 9*DC24V (NPN/PNP)
DO 9*DC24V(PNP) |
DI 10*DC24V (NPN/PNP)
DIO 4*DC24V
DO 10*DC24V (PNP) |
| Built-in AI/AO |
3*RD
Support Pt100 type, measuring temperature in the range of -40℃ to 240℃ |
2*TC
Support J/K/E/T types |
2*AI, 1*AO
support 4-20mA/1-5V/0-20mA/0-10V |
| Expansion |
support up to 8 KS modules |
| Program Download |
USB SLAVE(USB-B) /RS485 (PORT1) |
USB SLAVE(USB-B) /RS485 (PORT1) |
USB SLAVE(USB-C) /RS485 (PORT1) |
| CAN |
1 channel
Free communication |
1 channel
Free communication |
1 channel
Kinco motion control
Free communication |
| *The Kinco motion control function and CANopen master function cannot be used simultaneously with the expansion function |
| Serial Port |
2*RS485(PORT1/PORT1), support communication rates up to 115.2kbps
PORT 1:programming protocol, Modbus RTU master/slave、free communication
PORT 2: Modbus RTU master/slave、free communication |
| High-speed Inputs |
4 channels, support single-phase, dual-phase UP/DOWN, and AB phase mode, support a maximum frequency of 50kHz |
| High-speed Outputs |
4 channels |
4 channels |
4 channels |
Q0.0, Q0.1, Q0.4 :Support a maximum frequency of 50kHz (the load resistance should not exceed 3kΩ when used at the highest frequency).
Q0.5 : Support a maximum frequency of 10kHz. |
| Interrupts |
4(I0.0-I0.3), supporting both rising and falling edge interrupts |
| Program Capacity |
4k instructions |
| Data Capacity |
M Area：1k bytes V Area：4k bytes |
| Data Backup |
E2PROM，448 bytes |
| Data Retention |
V Area：VB0-VB1907, 1908 bytes
C Area：C0-C63
Lithium battery ,Battery lifetime: 3years typical, at 25°C |
| RTC |
Built-in real-time clock, with an error of less than minutes per month at 25℃ |
| Configuration Software |
KincoBuilder |
| HMI Section |
| LCD Size |
7” TFT |
4.3” TFT |
4.3” TFT |
| Resolution |
800*480 |
480*272 |
480*272 |
| Color Depth |
256K |
256K |
256K |
| Brightness |
250cd/m2 |
400cd/m2 |
400cd/m2 |
| Backlight |
LED |
| Touch Screen |
4-Wire Precision resistive network (Surface Hardness 4H) |
4-Wire Precision resistive network (Surface Hardness 4H) |
4-Wire Precision resistive network (Surface Hardness 4H) |
| LCE Lifespan |
50000h |
| CPU |
700MHz RISC |
700MHz RISC |
700MHz RISC |
| Serial Port |
None |
None |
*RS232(COM2) |
| Ethernet |
10M/100M Adaptive |
| Memory |
128MB Flash + 64MB DDR2 |
128MB Flash + 64MB DDR2 |
128MB Flash + 64MB DDR2 |
| Recipe Memory |
256K + RTC |
| Expansion Menory |
USB HOST(USB-A) |
USB HOST(USB-A) |
USB HOST(USB-A) |
| Program Download |
USB SLAVE(USB-B)/Ethernet/ USB HOST(USB-A) |
USB SLAVE(USB-B)/Ethernet/ USB HOST(USB-A) |
USB SLAVE(USB-C)/Ethernet/ USB HOST(USB-A) |
| Printing Port |
USB SLAVE(USB-B) |
USB SLAVE(USB-B) |
USB SLAVE(USB-C) |
| Configuration Software |
DTools + EdgeAccess + MIoT |
| Outer Dimensions |
204*150*33.9mm |
132*102*31.5mm |
132*102*45.42mm |
| Installation Dimensions |
192*138mm |
119*93mm |
119*93mm |
Thông tin đặt hàng
Powered by 24DCV, 1*USB SLAVE (USB-B, shared by PLC and HMI), supporting programming protocols;
PLC Section: DI9 *DC24V(NPN/PNP), DO9 *DC24V(PNP), AI 2*TC（Supports J/K/E/T type thermocouples, with optional internal and external cold junction compensation), 2*RS485, 1*Expansion interface (support up to 8KS modules);
HMI Section: 4.3” TFT, 1*USB HOST(USB-A), 1*Ethernet, supports M-IoT functionality
