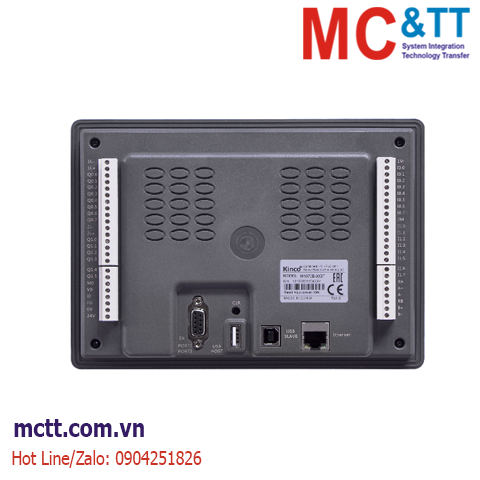

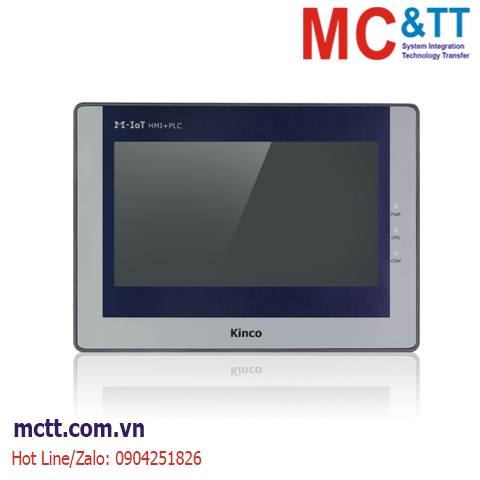

Màn hình cảm ứng HMI 4.3 inch tích hợp PLC Kinco MK043E-27DT (10*DI, 10*DO, 4*DIO, 2*AI, 1*AO, 2*RS485)

Màn hình cảm ứng HMI 4.3 inch tích hợp PLC Kinco MK043E-27DT (10*DI, 10*DO, 4*DIO, 2*AI, 1*AO, 2*RS485)

Kinco MK series combines the advantages of the M-IoT, and is an economical all-inone product that supports the M-IoT function launched by the Kinco Company.

The Kinco MK series all-in-one HMI-PLC retains the high cost performance of the Kinco HP series of all-in-one machines, but adopts a high-performance CPU and the new DTools software technology platform for programming the HMI, so as to support more rich picture components and functions of the new software. In addition, combined with the Kinco M-IoT technology platform it provides remote download, pass through PLC communication over the network, VNC remote monitoring, equipment management and other advanced remote operation and maintenance functions. This will provide more value for our users.

Tính năng

• M-IoT Function

Support program upload and download, pass through PLC communication through network, VNC remote monitoring, equipment management and other rich remote operation and maintenance functions, easy to use and powerful, to facilitate the application needs of customers in various applications.

• Performance

The HMI part adopts industrial CPU, 700MHz main frequency, 128MB Flash + 64MB DDR2 mass storage, and supports the new generation touch screen Dtools programming software of Kinco, which further improves the performance of the product.

• Extended Function

The PLC supports a rich variety of extension modules, it can be extended with a maximum of 8 KS extension modules. It can meet the needs of a variety of applications of users, with a better cost performance.

• High speed pulse counter

4 high speed pulse counters are provided. Each high-speed counter allows a maximum of 32 PV values and supports 32 "CV=PV" interrupts. High speed counter supports a variety of modes, it can be single-phase, dual-phase (Up/Down), AB phase (1-fold and 4-fold frequency).The maximum counting frequency of the four pulse counters is 50KHz

• High speed pulse output

4 high-speed pulse outputs are provided, all support PTO (pulse string) and PWM (pulse width modulation) output signals. The software provides PLS (PWM or PTO), positioning control command group, PFLO_F (follow instruction) and other functions to facilitate users implementing simple motion control applications.

• Serial communication ports

The PLC part contains 2 RS485 interfaces, PORT1, PORT2, with communication rates of up to 115.2kbps. PORT1 supports Kinco programming protocols, Modbus RTU master and slave stations, and free serial protocol. PORT2 supports Modbus RTU master and slave stations and free serial protocol

Thông số kỹ thuật

Thông tin đặt hàng

• MK043E-27DT

DC24V, 4.3 TFT display, DI 10*DC24V, DO 10*DC24V, DIO 4*DC24V, 2*AI, 1*AO, USB2.0 Programming port, 2*RS485, up to 8 expansion modules

Tài liệu

Catalog

Kinco_enUserManual for MK Series
