Digital Module for Hybrid (DI 8 points, DO 6 points Relay)
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

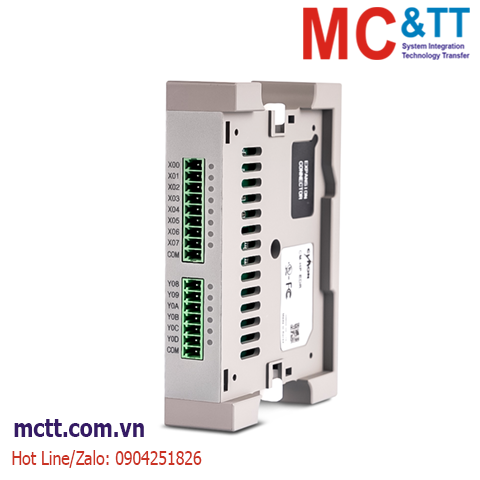

Module 8 kênh đầu vào số + 6 đầu ra Relay cho CM-sHP07CD HYBRID Xpanel Cimon CM-HP-EDR
Tính năng
Thông số kỹ thuật
|
DC Input |
Relay Output |
Rated I/O Voltage |
DC 24 V |
AC 220 V/DC 24 V |
Rated I/O Current |
4 mA |
1 point 2 A/COM 5 A |
On Voltage/Current |
DC 19 V/3 mA |
- |
Off Voltage/CUrrent |
DC 6 V/1 mA |
- |
Response Time |
Less than 3 ms |
Less than 10 ms |
Operation Indication |
LED will be ON when the input is ON |
|
Insulation Type |
Photocoupler |
Relay |
Input Type |
Sink/Source |
- |
Output Type |
- |
Relay |
Thông tin đặt hàng
Expansion Modules (PLC-S) | |||
---|---|---|---|
1 | CM-HP-DM | DUMMY | sHP07 dummy, for protection of Hybrid expansion port, or expansion to PLC-S modules |
2 | CM-HP-EAA | AIO-4 | Analog module for sHP07 (AI 2 Ch, AO 2 Ch) (0–5 V, 1–5 V, 0–10 V, -10–10 V, 0–20 mA, 4–20 mA) |
3 | CM-HP-EDR | DI8/DO6 | Digital module for sHP07 (DI 8 pts [TR Sink/Source], DO 6 pts [relay]) |
Module tùy chọn
Digital I/O
No. | Model | Type | Specification |
---|---|---|---|
1 | CM3-SP32EDO | DI-32 | DI 32 pts, DC 24V |
2 | CM3-SP32EOT | DO-32 | DO 32 pts. DC 24V TR (Sink) |
3 | CM3-SP32EOC | DO-32 | DO 32 pts. DC 24V TR (Source) |
4 | CM3-SP16EOR | DO-16 | DO 16 pts, Relay Output |
5 | CM3-SP32EDT | DI-16 / DO-16 | DI 16 pts, DO 16 pts, TR (Sink) |
Analog I/O & Temp. Measuring
No. | Model | Type | Specification |
---|---|---|---|
1 | CM3-SP04EAO | AI-4 | AI 4CH Current/Voltage |
2 | CM3-SP04EAA | AIO-4 | AI 2CH / AO 2CH Current Voltage |
3 | CM3-SP04EOAI | AO-4 | AI 4CH RTD |
4 | CM3-SP04EOAI | AI 4CH TC | |
5 | CM3-SP04EOAI | AI 4CH TC & RTD MUX | |
6 | CM3-SP04EOAI | AO-4 | AO 4CH Current Output |
7 | CM3-SP04EOAV | AO 4CH Voltage Output |
Module truyền thông
No. | Model | Type | Specification |
---|---|---|---|
1 | CM3-SP02ERS | Comm. | RS232C 1CH, RS422/485 1CH, MODBUS RTU Master |
2 | CM3-SP02ERR | RS232C 2CH. MODBUS RTU Master | |
3 | CM3-SP01EET | 10/100Mbps, UDP/TCP, TCP MODBUS Master |
Phụ kiện
No. | Model | Type | Specification |
---|---|---|---|
1 | CM0-TB32M | SP32MDT | Multi-Terminal Block |
3 | CM0-SCB15E | SP32EDO, SP32EOT | I/O 32 Connection Cable (1.5m) |
