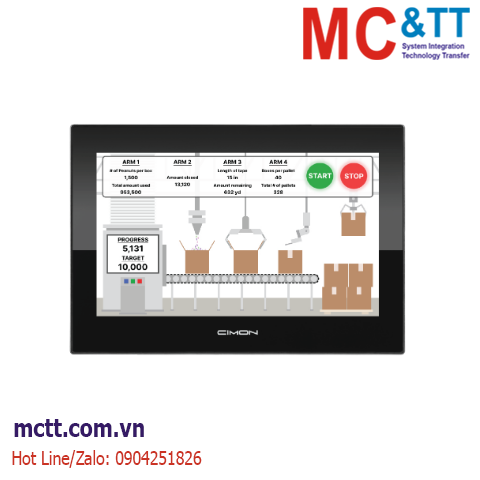

Màn hình cảm ứng HMI/Xpanel 12.1 inch Cimon CM-eXT12-D (3*COM, 2*Ethernet, 1 SD Slot, USB Host)
Introducing the Xpanel eXT and nXT series, our advanced industrial HMI(Human Machine Interface) solutions that set a new standard for performance and usability. Paired with our innovative Canvas HMI software, the Xpanel eXT and nXT series offer a seamless and efficient user experience by combining industrial-grade touch technology, powerful embedded OS hardware with a quad-core CPU, and an intuitive runtime platform. The Xpanel eXT and nXT series are engineered to optimize and streamline industrial operations. Elevate your HMI experience today.
The Xpanel eXT packs a punch with its powerful hardware, responsive resistive touch interface, and intuitive runtime platform paired with powerful HMI programming software.
The Xpanel eXT is designed to provide reliable performance while meeting industrial standards.
Trust that you are getting the same high-quality industrial HMI that you’ve come to expect from CIMON at an affordable price point with the Xpanel eXT.
Tính năng
- Our Flagship HMI display,
- cost saving features like a resistive touch screen front panel mounted in a plastic housing
- Quad-core CPU, embedded OS
- IP65, NEMA Type 4X
- Compatible with CIMON Canvas HMI visualization software, which is user-friendly for all skill levels.
Thông số kỹ thuật
| LCD Size |
12.1" |
| LCD Type |
TFT Color |
| Colors |
16.2M colors |
| Resolution |
1024 x 768 |
| Backlight |
LED |
| Luminance |
500 cd/m² |
| Backlight Lifetime |
50,000 hours |
| Touch Panel |
4 Wire Resistive |
| Memory |
1 GB DDR3 |
| Storage |
8 GB eMMC |
| Operating System |
Embedded Linux |
| Programming Software |
Canvas |
|
Interface |
SD Card |
1 SD Slot |
| COM1 |
RS-422/485 |
| COM2 |
2xRS-232 |
| Ethernet |
2x10/100/1000 Ethernet |
| USB Host |
2 Port |
| Tool Port |
2 USB Device |
| Audio |
None |
| Front Bezel |
Aluminum |
| Input Power |
DC 24 V (Class 2) |
| Power Consumption |
12 W |
| Item Weight |
3.3 kg |
| Dimension (mm) |
330x250x83 |
| Panel Cut (mm) |
319x239 |
|
Certifications |
UL |
UL61010-1 / UL61010-2-201 (E231117) |
| UL Hazardous |
– |
| CE |
Electromagnetic Compatibility Directive 2014/30/EU (EMC) |
| FCC |
The 47 CFR, Part2, Part15 and Part 18 Of FCC Requirement |
| KC |
Registration of Broadcasting and Communication Equipments |
|
Protection Class |
IP65 (front), NEMA 4X |
| Operating Temperature |
0°C – 65°C |
| Storage Temperature |
-20°C – 65°C |
| Operating Humidity |
10% – 90% RH (below 29°C, no dew condensation) |
| Storage Humidity |
10% – 90% RH (below 39°C, no dew condensation) |
| Environment Condition |
800 hPa – 1114 hPa (2000 m/6,500 ft or less) |
| Dust |
≤ 0.1 mg/m³ (Conductive dust is not allowed) |
| Pollution Degree |
≤ Pollution degree 2 |
|
Vibration Resistance |
JIS B 3502, IEC/EN 61131-2 compliant |
| 5 – 9 Hz Single amplitude: 3.5 mm |
| 9 – 150 Hz Fixed acceleration: 9.8 m/s² |
| X, Y, Z directions for 10 cycle (approx. 100 min.) |
|
Shock Resistance |
JIS B 3502, IEC/EN 61131-2 compliant |
| 147 m/s², X, Y, Z directions for ±3 times (Total 18 times) |
| Noise Resistance |
Impulse, EFT/Burst, Surge, ±2 KV, 1 us |
|
Static Discharge Resistance |
Contact Discharge 4 kV (IEC 61000-4-2) |
| Air Discharge 8 kV (IEC 61000-4-2) |
Thông tin đặt hàng
12” TFT, DC24V, 3 Serial, 2 Ethernet, Embedded Linux
Tài liệu
Datasheet
