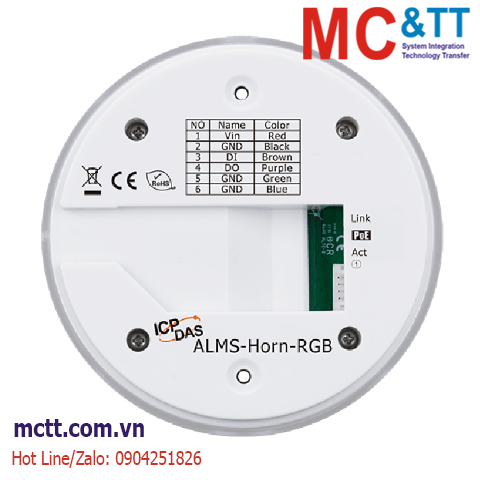

Module đèn cảnh báo tích hợp còi báo động PoE Modbus TCP ICP DAS ALMS-Horn-RGB CR
Feature
- Built-in Web Server
- PoE Ethernet support
- Support for Modbus TCP and Modbus UDP protocol
- Support for network security services such as HTTPS, MQTT (optional TLS) and Modbus (optional TLS).
- 1 Photo couple input, 1 Open Collector output
- Water clear upper cover
- 8 user define RGB 3 color Ultrabright LED
- 4 Selectable Alarm Tone
- 100 dbm Piezo Transducer Output
Introduction

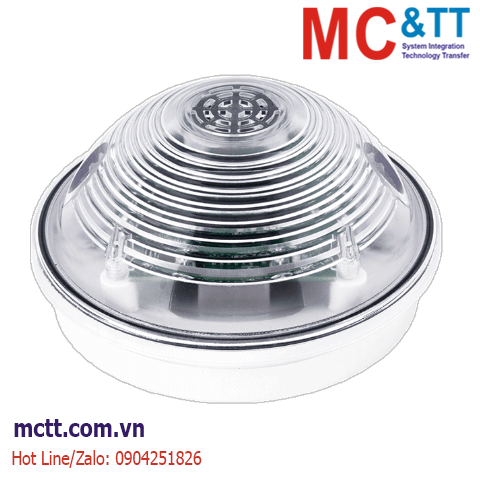

The ALMS-Horn-RGB is a piezo transducer alarm siren designed for use in cyber security applications. This device has a water clear upper cover, RGB 3 color Ultrabright LED, 100dbm Piezo Transducer siren, with PoE Ethernet, Modbus TCP and Modbus UDP protocol & built-in Web Server. It is easy for users to control remotely and is user-friendly.
The ALMS-Horn-RGB is ideal for security, building automation, and factory automation applications. It has one digital input for any dry contact output and one digital output. Each device has 4 kinds of alarm tone, NC/NO input mode selection and user-define RGB alarm LED color. The ALMS-Horn-RGB supports the Modbus protocol, which makes perfect integration for monitoring or control in SCADA software, HMI Modbus & Utility's. This device delivers high sound pressure output, supports a wide input voltage range, and is rated IP43 waterproof, making it suitable for various industrial environments.
Application
- Building Automation
- Security Automation
- Machine Automation
- Factory Automation
- Testing Equipment
- Fire Alarm System
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power |
| ESD (IEC 61000-4-2) |
±8 kV Air for Random Point |
| LED Indicators |
| Status |
System, Ethernet ACT, Ethernet PoE 3 LED's |
| Digital Input/Counter |
| Channels |
1 |
| Type |
Dry Contact: Sink |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Isolation |
3750 VDC |
| Digital Output |
| Channels |
1 |
| Type |
Open Collector (Sink) |
| Load Voltage |
+3.5 VDC ~ +30 VDC |
| Load Current |
400 mA |
| Alarm Output |
| LED |
Water clear upper cover with 8 RGB Ultrabright 3 color LED |
| LPiezo Transducer Pressure Level |
100 ± 5 dB @10cm/3.0 KHz (W/O waterproof membrane) |
| Ethernet |
| Ports |
RJ-45, 10/100 Base-Tx |
| PoE |
Yes, Class 3 |
| Access Control |
Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP, Modbus (optional TLS), MQTT (optional TLS) , HTTP/HTTPS |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
12 ~ 48 VDC with Reverse Protection (Vin to GND) |
| Consumption |
6.6 W (max) |
| Mechanical |
| Dimensions (mm) |
119 x 119 x 61 (W x L x H) |
| Installation |
Panel Mount/
Wall Mount |
| Ingress Protection Rating |
IP43 |
| Environment |
| Operating Temperature |
-20 ~ +75°C |
Download
Datasheet
Documents
Ordering Information
| ALMS-Horn-RGB CR |
Cybersecurity type piezo transducer alarm siren with Single Input, Single Output, 4 selectable Tone, RGB 3 Color Ultrabright LED, PoE Ethernet, Piezo Transducer Alarm Siren (RoHS) |
