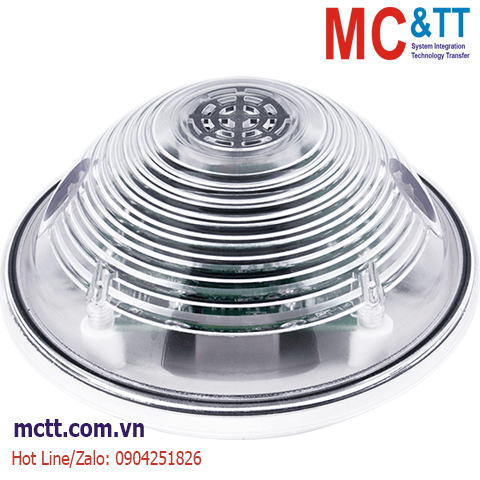

Module Ethernet Modbus TCP Loa + đèn cảnh báo 1 kênh DI + 1 kênh DO ICP DAS ALM-Horn-RGB CR
Feature
- Built-in Web Server
- PoE Ethernet support
- Modbus TCP protocol support
- 1 Photo couple input, 1 Open Collector output
- Water clear upper cover
- 8 user define RGB 3 color Ultrabright LED.
- 4 Selectable Alarm Tone.
- 100 dbm Piezo Transducer Output.
Introduction
The ALM-Horn-RGB have a water clear upper cover, RGB 3 color Ultrabright LED, 100dbm Piezo Transducer siren, with PoE Ethernet, Modbus TCP protocol & built-in Web Server.
ALM-Horn-RGB include 1-channel digital input for any dry contact output such as SA, BA, FA.. etc. and 1-channel digital output, Each device have 4 kinds of alarm tone, NC/NO input mode select, user define RGB alarm LED color. The ALM-Horn-RGB support Modbus protocol, Which makes perfect integration for monitoring or control in SCADA software, HMI Modbus & Utility's. ALM-Horn-RGB have High Sound Pressure output, wide input power range and IP43 waterproof.
Application
- Building Automation
- Security Automation
- Machine Automation
- Factory Automation
- Testing Equipment
- Fire Alarm System
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power |
| ESD (IEC 61000-4-2) |
±8 kV Air for Random Point |
| LED Indicators |
| Status |
System, Ethernet ACT, Ethernet PoE 3 LED's |
| Digital Input/Counter |
| Channels |
1 |
| Type |
Dry Contact: Sink |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Isolation |
3750 VDC |
| Digital Output |
| Channels |
1 |
| Type |
Open Collector (Sink) |
| Load Voltage |
+3.5 VDC ~ +30 VDC |
| Load Current |
400 mA |
| Alarm Output |
| LED |
Water clear upper cover with 8 RGB Ultrabright 3 color LED |
| LPiezo Transducer Pressure Level |
100 ± 5 dB @10cm/3.0 KHz (W/O waterproof membrane) |
| DIP Switch |
| Mode |
Restore to default (inside case) |
| Ethernet |
| Ports |
RJ-45, 10/100 Base-Tx |
| PoE |
Yes, Class 3 |
| Security |
Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP, HTTP |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
12 ~ 48 VDC with Reverse Protection (Vin to GND) |
| Consumption |
6.6 W (max) |
| Mechanical |
| Dimensions (mm) |
119 x 119 x 48 (W x L x H) |
| Installation |
Panel Mount/
Wall Mount |
| Ingress Protection Rating |
IP43 |
| Environment |
| Operating Temperature |
-20 ~ +75°C |
Download
Datasheet
Documents
Ordering Information
| ALM-Horn-RGB CR |
Single Input, Single Output, 4 selectable Tone, RGB 3 Color Ultrabright LED,
PoE Ethernet, Piezo Transducer Alarm Siren (RoHS) |
