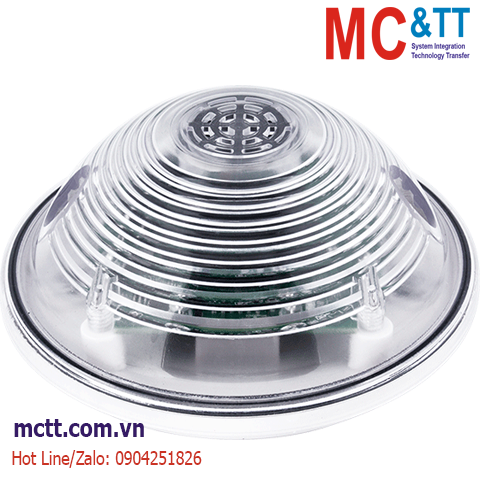

Module Loa + đèn cảnh báo 1 kênh DI + 1 kênh DO ICP DAS ALM-Horn-BR CR

Chia sẻ:
Mã sản phẩm: ALM-Horn-BR
Thương hiệu: ICP DAS
Tình trạng:

Single Input, Single Output, 8 Blue+8 Red LED, 4 selectable Tone, Piezo Transducer Alarm Siren

Liên hệ
Mô tả

Module Loa + đèn cảnh báo 1 kênh DI + 1 kênh DO ICP DAS ALM-Horn-BR CR

Feature

  • Photo couple input, Open Collector output
  • Piezo Transducer Output
  • Water clear upper cover with 8 Ultra-Bright RED LED, or -BR version with 8 Blue + 8 Red Ultra-Bright LED
  • 4 Selectable Alarm Tone
  • NC/NO Input Selectable

Introduction

The ALM-Horn Series include 3 models, -BR with water clear upper cover, Blue + Red LED, ALM-Horn as standard siren, ALM-Horn-WF have WLAN connection complies with the IEEE802.11b/g/n standards, support Modbus TCP protocol & HTML, ALM-Horn-MRTU have RS-485 interface support Modbus RTU protocol.

ALM-Horn series device include 1-channel digital input for any dry contact output such as SA, BA, FA..etc, and 1-channel digital output  Each device has 4 kinds of alarm tone, NC/NO input mode select by switchs. The ALM-Horn-WF & -MRTU support Modbus protocol, Which makes perfect integration for monitoring or control in SCADA software, HMI Modbus & Utilitys. ALM-Horn series have High Sound Pressure output, wide input power range & IP43 waterproof.

Application

  • Building Automation
  • Security Automation
  • Machine Automation
  • Factory Automation
  • Testing Equipment
  • Fire Alarm System

Specifications

EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power
ESD (IEC 61000-4-2) ±8 kV Air for Random Point
LED Indicators
Status 2 colors LED, Blue for System status, Red for Alarm status.
Digital Input/Counter
Channels 1
Type Dry Contact: Sink
ON Voltage Level Close to GND
OFF Voltage Level Open
Isolation 3750 VDC
Digital Output
Channels 1
Type Open Collector (Sink)
Load Voltage +3.5 VDC ~ +30 VDC
Load Current 400 mA
Alarm Output
LED Water clear upper cover with 8 RED UltraBright RED LED
-BR: With 8 Blue + 8 RED UltraBright LED
LPiezo Transducer Pressure Level 120 ±5 dB @10cm/3.0 KHz (W/O waterproof membrane)
DIP Switch
Mode SW1,2: Include 4 kinds of alarm Tone, SW4:Input Mode (NO/NC) select
Power
Input Range 12 ~ 48 VDC with Reverse Protection (Vin to GND)
Consumption 0.4 W Active.
Mechanical
Dimensions (mm) 119 x 119 x 48 (W x L x H)
Installation Panel Mount/
Wall Mount
Ingress Protection Rating IP43
Environment
Operating Temperature -20 ~ +75°C

Download

Datasheet

Documents

Ordering Information

ALM-Horn-BR     CR  Single Input, Single Output, 4 selectable Tone, Piezo Transducer Alarm Siren (RoHS)
