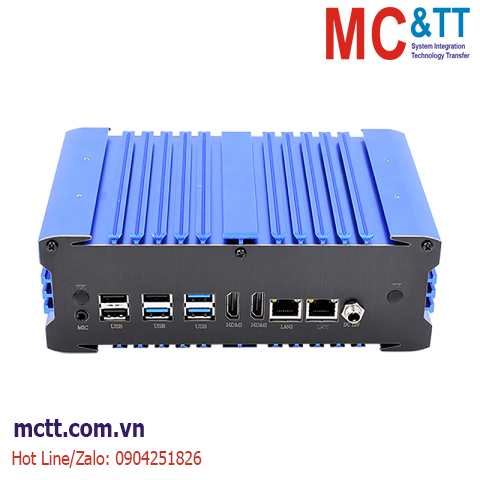

Model |
AIBOX-105-2L6C |
|
Supported OS |
Win 10, Win11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.) |
|
CPU |
Specification |
Intel® Celeron® J6412, Quad-core, 4 Threads, base Fre. 2.00 GHz, Burst Fre. 2.60GHz, TDP 10W |
|
Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors, 16Eus. |
|
RAM |
SO-DIMM |
1 * Non-ECC SO-DIMM Slot, support DDR4-2666/2933/3200MHz, Up to 32GB |
|
Storage Device &
Extended Capabilities |
SATA |
1 * SATA3.0 7P Connector with 1 * SATA Power Header [1] |
|
Mini PCIe |
1 * Mini PCIe Slot (USB2.0+PCIE/mSATA,support 4G, default mSATA, connected to SIM wafter) [2] |
|
M.2 M-key |
1* M.2 (NGFF) 2280 M-key slot, support PCIex2 Gen.3 NVMe/ SATA3.0 SSD [1] [3] |
|
M.2 B-key |
1 * M.2 Key-B Slot (PCIE/USB3.0+ USB2.0,3052, default USB3.0, Support 4G/5G, connected to SIM wafter); [2] [4] |
|
I/O Interface |
COM |
3 * RS232 (COM1/2/3, Header, Full Wires) 2 * RS232/TTL (COM4/5, Header, 2 Wires)
1 * RS232/RS485/TTL (COM6, Header, 2 Wires) [5] |
|
Ethernet |
2 * RJ45 connector, Intel I225-V GBE LAN Chip (10/100/1000 Mbps) |
|
USB |
3 * USB3.0, 3 * USB2.0 (TYPE-A, Rear IO); 4 * USB2.0 (Header, Internal) [2] [4] |
|
Video |
1 * HDMI(TYPE-A): max resolution up to 4096*2304@60Hz; 1 * HDMI (Header): max resolution up to 4096*2304@60Hz; 1 * DP (TYPE-A): max resolution up to 4096*2304@60Hz; |
|
Audio |
Realtek Audio HDA Codec;
1 * Line-Out + MIC 2in1 ΦΦ3.5mm Jack; 1 * Amplifier Header, 3W into an 4Ω Loads |
|
Power Supply |
12V DC; 1* DC Threaded Jack (5.5* 2.5mm); Optional support 24V DC with Phoenix Terminal conneector. |
|
Others |
1* 8-bit GPIO header (4-Inputs/4-Outputs, 0-5V Input Range, on motherboard); 1 * SIM Card Header connected to M.2 B-key slot |
|
Environment |
Operating Temperature |
-20 ~ 65 °C w/ 0.7m/s Airflow |
|
Storage Temperature |
-20 ~ 85 °C (-40~185 °F) |
|
Relative Humidity |
40 °C @ 95%, Non-Condensing |
|
Physical Characteristics |
Dimensions |
290.35* 79.6* 234 mm (W* H* D) |
|
Net Weight |
2 KG |
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
