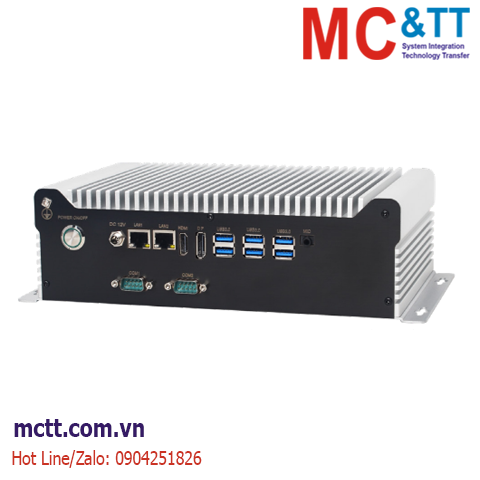

Máy tính nhúng công nghiệp không quạt (2 LAN + 2 COM) TP-IPC IBOX-205SBC-12TH

Chia sẻ:
Mã sản phẩm: IBOX-205SBC-12TH
Thương hiệu: TP-IPC
Tình trạng: Còn hàng

Máy tính nhúng công nghiệp không quạt (2 LAN + 2 COM) TP-IPC IBOX-205SBC-12TH

Liên hệ
Mô tả

Máy tính nhúng công nghiệp không quạt (2 LAN + 2 COM) TP-IPC IBOX-205SBC-12TH

Tính năng

  • Support up to new Intel® Iris® Xe graphics, the platform offers up to 2.47x  times faster graphics performance vs. 11th Gen Intel® Core™ Processors;
  • Fast AI with hardware acceleration and Xe Architecture, up to 96 EUs and  Vector Neural Network Instructions (VNNI) on the CPU for a high degree of  parallelization in AI workloads;
  • The HDMI support 4096*2160@30Hz and DP++ support 4096*2304@60Hz;
  • Up to two video decode boxes, support for up to 48 simultaneous 1080p  streams;
  • Full sealed and aluminum alloy cooling enclosure, dustproof, anti-vibration  and anti-interferenceand fully enclosed with fanless cooling system;
  • Modular Expansion for Easy Maintenance, it comes with three M.2 slots for wireless cards (5G/4G, Wi-Fi, Bt, and GNSS) and M.2 SSD

Thông số kỹ thuật

Model BOX-205SBC-12TH
Supported OS Win 10, Win11, Linux (Ubuntu, Debian, Kali, CentOS, etc.), Win 10 IoT
CPU Processor Socket Intel® Mobile Professor socket FCBGA1744
Series Intel® Core™ i3-1215U Processor, TDP 15W Intel® Core™ i5 - 1235U Processor, TDP 15W Intel® Core™ i7 - 1255U Processor, TDP 15W
TDP Minimum Assured Power12 W, Processor Base Power 15W, Maximum Turbo Power 55W
Graphic Intel® UHD Graphics Intel® Iris® Xe Graphics Intel® Iris® Xe Graphics
GPU Specifications Up to 64 EUs, 1.10 GHz Up to 80 EUs, 1.20 GHz Up to 96 EUs, 1.25 GHz
RAM Type & Qty 1 * non-ECC SO-DIMM Slot 1 * non-ECC SO-DIMM Slot 1 * non-ECC SO-DIMM Slot
Frequency DDR4-3200 MHz DDR4-3200 MHz DDR4-3200 MHz
Capacity Up to 32GB Up to 32GB Up to 32GB
Storage Device SATA 1*SATA3.0 7P slot on board (6Gb/s) , with 1* SATA Power Wafer
M.2 1*M.2 (NGFF) 2280 M-Key Slot (SATA/PCIe x4, support PCIe x4 NVMe SSD)
I/O Interface COM 2*RS232 (COM1/2, Wafer, Full lanes);
3*RS232/TTL (COM3/4/5, Wafer, 3 lanes);
1 * RS232/RS485/TTL (COM6, Wafer, 3 lanes);
Ethernet 2 * Intel® GbE LAN Chip (10/100/1000 Mbps, RJ45)
USB 6 * USB3.0 (TYPE-A, Rear IO);
3 * USB2.0 (Wafer, Internal);
Video 1* HDMI, Support 4096*2160@30Hz;
1* DP++, Support 4096*2304@60Hz;
Audio Realtek Audio HAD Codec, 1*Line-Out + MIC 2in1, 1*Amplifier Wafer, 3-W (per channel) into a 4-Ω Loads
SIM 1* SIM Card Wafer
Power Supply 1 * 12VDC/24VDC Power Input with Φ2.5mm Thread Jack (Auto Detect , 2P 5.08mm Terminal Block Optional)
Others

1 * 8-bit GPIO Wafer; 1 * Front Panel Wafer; 1 * System FAN Wafer; 1 * CPU FAN Wafer; 1 * CMOS Clear Jumper

Extended
Capabilities
Additional
Internal Interface

1 * M.2 Key-E Slot (PCIE+USB2.0, Default PCIE, Support WIFI, 2230)

1 * M.2 Key-B Slot (PCIE + USB3.0 + USB2.0, Support 5G/4G, 2242/3052)

Functionality Extension WiFi, 4G, 5G, CANBus
Environment Operating Temp. 0 ~ 60 °C (0°F ~ 140°F)
Storage Temp. -20~75 °C (-40~167 °F)
Relative Humidity (Operation) 10%~90%, (Storage) 5%~95%, non-condensing
Physical
Characteristics
Dimensions 290.35* 81.54* 165.5 mm (W* H* D)
Net Weight 2.5 KG (The actual weight is subject to the final configuration)
Regulation EMC CE/FCC Class B, CCC
Safety CE-LVD, RoHS, CCC

Kích thước sản phẩm



Bộ xử lý CPU

CPU Code Name Total
Cores
Total
Threads
Max Turbo
Frequency
Base
Frequency
Cache TDP Memory Types Integrated Graphics
Intel® Core™ i3 - 1215U Alder Lake 6 8 4.40 GHz 1.2 GHz 10 MB Intel® Smart Cache 12-55W DDR4 Intel® UHD Graphics
Intel® Core™ i5 - 1235U Alder Lake 10 12 4.40 GHz 1.3 GHz 12 MB Intel® Smart Cache 12-55W DDR4 Intel® Iris® Xe Graphics
Intel® Core™ i7 - 1255U Alder Lake 12 16 4.7 GHz 1.7 GHz 18 MB Intel® Smart Cache 12-55W DDR4 Intel® Iris® Xe Graphics

Phụ kiện mua thêm

Optional Items Max Qty Description
Isolated RS-232 2 DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-232 2 DB9 or Phoenix Terminal connector, connected by header
RS-422 With Surge Protection 2 DB9 or Phoenix Terminal connector, connected by header
RS-485 With Surge Protection 2 DB9 or Phoenix Terminal connector, connected by header
4G Module 1 Connected by M.2 interface
5G Module 1 Connected by M.2 interface
WiFi Module 1 Connected by M.2 interface
Dual channel CAN-Bus Module 1 Connected by Mini-PCIe
Ignition Switch Module 1 Phoenix Terminal connector, connected by internal power switch and 4-pin ATX power connector
