| Model |

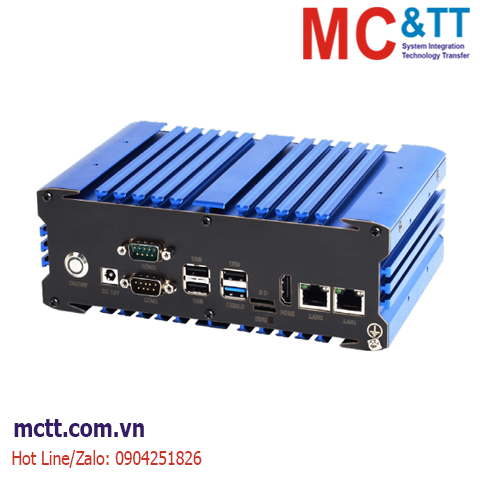

IBOX-105-ARM-2L6C |
| Supported OS |
Android 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.) |
| CPU |
ARM Rockchip |
RK3588, Quad-core Cortex-A76 + Quad-core Cortex-A5 |
RK3576, Quad-core Cortex-A72 + Quad-core Cortex-A5 |
RK3568, Quad-core Cortex-A55, Clock speed up to 2.0GHz |
| RAM |
Memory Type |
SDRAM LPDDR4X on board |
SDRAM LPDDR5 on board |
SDRAM LPDDR4X on board |
| Capacity |
8GB |
16GB |
4GB |
8GB |
8GB |
4GB |
2GB |
| Storage Device |
eMMC 5.1 |
64G |
128GB |
32G |
64GB |
64G |
32G |
16G |
| Form factor |
1 * TF Card |
1 * TF Card |
2 * SATA3.0 7P Connector; 1 * TF Card Slot |
| M.2 |
1* M.2 B-Key 2242/3052, PCIe x1/USB3.0/SATA, Support 5G/4G/ NVMe/SATA SSD |
| I/O Interface |
COM |
1 * RS232/485 (COM1, DB9M/Header, selected by jumper);
1 * RS232/485 (COM2, Header, selected by jumper)
4 * RS232 (COM3/4/5/6, Header) |
| Ethernet |
1* Realtek RTL8211F GbE Ethernet Controller;
1* Realtek RTL8211H GbE Ethernet Controller; |
2* Realtek RTL8211F -CG GbE Ethernet
Controller |
2 * Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps) |
| CANBus |
Optional 2* CANBus header, support CAN FD, CANBus 2.0 |
| USB |
1* USB3.0/ OTG ; 3 * USB3.0;
6* USB2.0 (Header, Internal) |
1* USB3.0/ OTG ; 3 * USB3.0;
5* USB2.0 (Header, Internal), one USB 2.0 colay for Mini-PCIe |
1 * USB3.0/OTG (TYPE-A, Rear IO); 3 * USB2.0 (TYPE-A, Rear IO)
6 * USB2.0 (Header, Internal) |
| Video |
1* HDMI, max 1920*1080@60Hz; |
1* HDMI, max 8K@60Hz; |
1*HDMI, max 4096x2304@60Hz |
| Optional with LVDS-HDMI daughter card to support second display, support max 1920*1080@60Hz |
| Audio |
2* Wafer, L/R Amplifier;
1* Wafer, Lin-out + MIC; |
| SIM |
1* SIM Crad for Mini-PCIe and M.2 key-B |
1, SIM1 Card Wafer, connected to Mini-PCIe;
1, Nano SIM1 Slot, connected to Mini-PCIe;
1, SIM2 Card Wafer, connected to M.2 key-B |
1* Mini-PCIe Slot with 1* External Nano SIM
card slot/ 1* Internal SIM card slot |
| Power Supply |
12V DC; 1* DC Jack (5.5* 2.5mm); Optional 9-36VDC Power Input with Terminal Block (2-Pin, 5.08mm) |
| Others |
8 * GPIO; 1 * Recovery Button; 1 * Power Button Header; 1 * System Reset Header; 1 * Power LED Header; 1 * SPI Header; 2 * TP I2C Header; 1 * System FAN Header; 2 * Debug Header; 1 * Cash Header; 1 * AT or ATX Select Jumper |
Extended
Capabilities |
Additional
Internal Interface |
1 * M.2 (NGFF) Key-B Slot (PCIE 3.0/PCIE2.0/USB3.0/SATA, 2242/3052);
1* Mini-PCIe, support PCIe x1/SATA/USB2.0 |
| Functionality Extension |
WiFi, 4G, 5G, CANBus |
| Environment |
Operating Temp. |
-10 ~ 70 °C w/ 0.7m/s Airflow |
| Storage Temp. |
-40 ~ 85 °C (-40~185 °F) |
| Relative Humidity |
40 °C @ 95%, Non-Condensing |
Physical
Characteristics |
Dimensions |
192* 67* 145 mm (W* H* D) |
| Net Weight |
2.05 KG |
| Regulation |
EMC |
CE/FCC Class B, CCC |
| Safety |
CE-LVD, RoHS, CCC |
