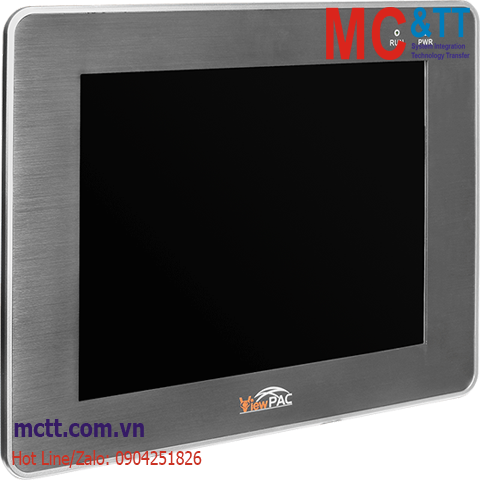

Màn hình lập trình nhúng AVEVA Edge 300 tag ViewPAC 10.4 inch CPU Cortex-A8 + WinCE 7.0 ICP DAS AEV-4231-CE7 CR
Features
• AVEVA Edge 300 tags runtime license ready
• Windows Embedded Compact 7 Operating System
• IP65 Compliant Front Panel
• 10.4" TFT LCD with Touch Panel
• RTC (Real-time clock)
• 64-bit Hardware Serial Number for Software Protection
• 3 Slots for High Profile I/O Modules
• Various Communication Interfaces
‣1 x 10/100/1000BASE-T Ethernet Port
‣2 x Serial Ports (RS-232/485)
‣1 x USB 2.0 (host)
Introduction
The AEV-4231-CE7 is CE7 based ViewPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU, 5.7”TFT LCD and a variety of input/output ports (USB, Ethernet, RS-232/485). Local 3 I/O slots are available to use ICP DAS I-8K and I-87K series I/O modules and remote I/O expansion is available to use Ethernet I/O modules and RS-485 I/O modules.
This ViewPAC also features with the powerful AVEVA Edge.
AVEVA Edge is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
Application
Specifications
| Software |
| OS |
Windows CE.NET 7.0 |
| Service |
FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support |
.Net Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplifi ed Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit |
| CPU |
Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
SDRAM 512 |
| Storage |
Flash 256 MB; A SD/microSD adapter and 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory |
MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock |
Provide seconds, minutes, hours, day of week/month, month and year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Size |
10.4” (4:3) |
| Backlight Life |
50,000 hours |
| Brightness |
400 cd/m2 |
| Resolution |
800 x 600 |
| Touch Panel |
5-wire, resistive type; light transmission: 80 % |
| LED Indicators |
| Status |
1 x System, 1 x Power |
| COM Ports |
| Ports |
1 x RS-232, Non-isolated; 1 x RS-485 |
| HMI |
| Rotary Switch |
Yes (0 ~ 9) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100/1000Base-TX |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Redundant Power Inputs |
Yes |
| Consumption |
0.45 A @ 24 VDC |
| Mechanical |
| Dimensions (mm) |
293 x 231 x 129 (W x L x H) |
| Panel Cut-Out (mm) |
276 x 214 +/- 1.0 |
| Installation |
Panel Mounting |
| Ingress Protection Rating |
Front panel: NEMA 4/IP65 |
| Environment |
| Operating Temperature |
-20 °C ~ +70 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Humidity |
10% ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| AEV-4231-CE7 CR |
10.4" LCD AVEVA Edge (300 tags) Based ViewPAC with 3 I/O slots (WinCE 7.0) (RoHS) |
