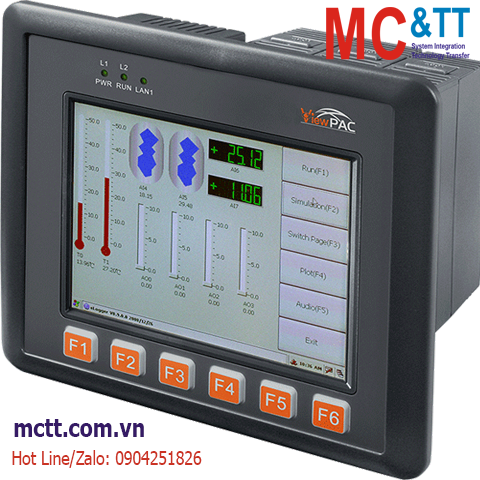

Màn hình lập trình nhúng AVEVA Edge 1500 tag ViewPAC 5.7 inch CPU Cortex-A8 + WinCE 7.0 ICP DAS AEV-1231-CE7-1500 CR

Features

• AVEVA Edge 1500 tags runtime license ready
• Windows Embedded Compact 7 Operating System
• IP65 Compliant Front Panel
• 5.7" TFT LCD with Touch Panel
• Rubber Keypad with 6 Keys
• RTC (Real-time clock)
• 64-bit Hardware Serial Number for Software Protection
• 3 Slots for High Profile I/O Modules
• Various Communication Interfaces
      ‣1 x 10/100/1000BASE-T Ethernet Port
      ‣2 x Serial Ports (RS-232/485)
      ‣1 x USB 2.0 (host)

Introduction

The AEV-1231-CE7-1500 is CE7 based ViewPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU, 5.7”TFT LCD and a variety of input/output ports (USB, Ethernet, RS-232/485). Local 3 I/O slots are available to use ICP DAS I-8K and I-87K series I/O modules and remote I/O expansion is available to use Ethernet I/O modules and RS-485 I/O modules.

This ViewPAC also features with the powerful AVEVA Edge.
AVEVA Edge is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.

Application

Specifications



Software
OS Windows CE.NET 7.0
Service FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5
Framework Support .Net Compact Framework 3.5
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplifi ed Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number Yes
System Memory SDRAM 512
Storage Flash 256 MB; microSD socket with one 4 GB microSDHC card (support up to 32 GB microSDHC card)
Non-Volatile Memory MRAM 128 KB; EEPROM 16 KB
Real Time Clock Provide seconds, minutes, hours, day of week/month, month and year
Watchdog Timer Dual Watchdog Timer
Display
Size 5.7” (4:3)
Backlight Life 20,000 hours
Brightness 400 cd/m2
Resolution 640 x 480
Touch Panel 4-wire, resistive type; light transmission: 80 %
LED Indicators
Status 1 x System, 1 x Power, 1 x Ethernet, 3 x Programmable
I/O Expansion
Slots 3
COM Ports
Ports 1 x RS-232, Non-isolated; 1 x RS-485
HMI
Rotary Switch Yes (0 ~ 9)
Rubber Keypad 6 Keys
Audio
Jack Microphone-In and Earphone-Out
Ethernet
Ports 1 x RJ-45, 10/100/1000Base-TX
USB
Connector 1
Power
Input Range +10 VDC ~ +30 VDC
Consumption 0.3 A @ 24 VDC
Mechanical
Dimensions (mm) 182 x 158 x 125 (W x L x H)
Panel Cut-Out (mm) 153 x 136 +/- 1.0
Installation Panel Mounting
Ingress Protection Rating Front panel: NEMA 4/IP65
Environment
Operating Temperature -20 °C ~ +70 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10% ~ 90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

AEV-1231-CE7-1500     CR  5.7" LCD AVEVA Edge (1500 tags) Based ViewPAC with 3 I/O slots (WinCE 7.0) (RoHS)
