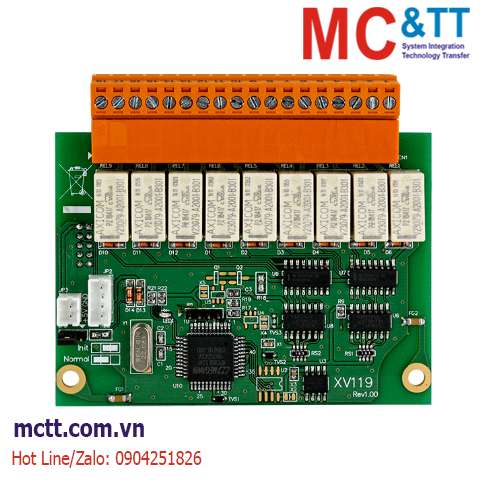

Card mở rộng 9 kênh Relay ICP DAS XV119 CR
The XV119 provides 9 Form A Signal relay output channels. The XV119 also provides options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intramodule isolation are also provided to enhance noise immunity capabilities in industrial environments.
Tính năng
- 9 Signal Relay Output channels
- 4 kV ESD Protection
- 3750 VDC Intra-module Isolation
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
Thông số kỹ thuật
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact For Each Terminal
±8 kV Air For Random Terminal |
| Relay Output |
| Channels |
9 |
| Type |
Signal Relay (Form A) |
| Contact Material |
Silver Nickel, Gold-covered |
| Contact Rating |
2 A @ 30 VDC
0.24 A @ 220 VDC
0.25 A @ 250 VAC |
| Operate Time |
3 ms (typical) |
| Release Time |
4 ms (typical) |
| Electrical Endurance |
2 x 10^5 ops. |
| Mechanical Endurance |
10^8 ops. |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Baud Rate |
115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
Modbus/RTU |
| Power |
| Consumption |
1.2 W Max. |
| Powered from Terminal Block |
5 VDC |
| Mechanical |
| Dimensions (mm) |
59 mm x 82 mm x 13 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Thông tin đặt hàng
| XV119 CR |
9-channel Signal Relay Output Module (RoHS) |
