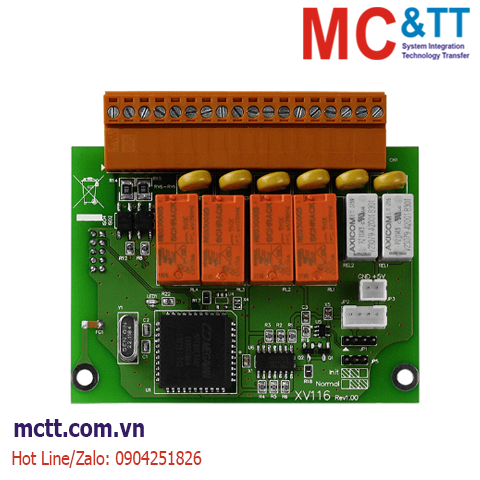

Card mở rộng 5 kênh DI + 6 kênh Relay ICP DAS XV116 CR
The XV116 provides 5 channels for digital input, as well as 6 Form A relay output channels. In addition, either sink- or source-type digital input can be selected via wire connections. All input channels can be used as 32-bit counters. The XV116 also provides options for configuring power-on digital output va l u e s . 4 kv ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.
Tính năng
- 5 Digital Input channels and 6 Relay Output channels
- Sink- and Source-type Digital Input
- Digital Input Channels can be used as 32-bit Counters
- Configurable Power-on Value Settings
- 70 VDC Overvoltage Protection for Digital Input
Thông số kỹ thuật
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact For Each Terminal
±8 kV Air For Random Terminal |
| Digital Input/Counter |
| Channels |
5 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+3.5 ~ +50 VDC |
| OFF Voltage Level |
+1 VDC Max. |
| Max. Counts |
32-bit (0 ~ 4, 294, 967, 285) |
| Frequency |
50 Hz |
| Min. Pulse Width |
10 ms |
| Input Impedance |
10 KΩ, 0.5 W |
| Overvoltage Protection |
70 VDC |
| Relay Output |
| Channels |
Signal Relay: 2 (Channel 0,1)
Power Relay: 4 (Channel 2 ~ 5) |
| Type |
Signal Relay (Form A)
Power Relay (Form A) |
| Contact Rating |
Signal Relay: 2 A @ 30 VDC, 0.24 A @ 220 VDC, 0.25 A @ 250 VAC
Power Relay: 6 A @ 35 VDC, 6 A @ 240 VAC |
| Operate Time |
Signal Relay: 3 ms (typical)
Power Relay: 5 ms (typical) |
| Release Time |
Signal Relay: 4 ms (typical)
Power Relay: 1 ms (typical) |
| Electrical Endurance |
Signal Relay: 2 x 10^5 ops
Power Relay: 1 x 10^5 ops. |
| Mechanical Endurance |
Signal Relay: 10^8 ops.
Power Relay: 30 x 10^6 ops. |
| Power on Value |
Yes |
| COM Ports |
| Ports |
1 x RS-232 |
| Baud Rate |
115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
Modbus/RTU |
| Power |
| Consumption |
1.2 W Max. |
| Powered from Terminal Block |
5 VDC |
| Mechanical |
| Dimensions (mm) |
59 mm x 82 mm x 13 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Thông tin đặt hàng
| XV116 CR |
5-ch Isolated DI (Wet) and 6-ch Relay Expansion Board (RoHS) |
