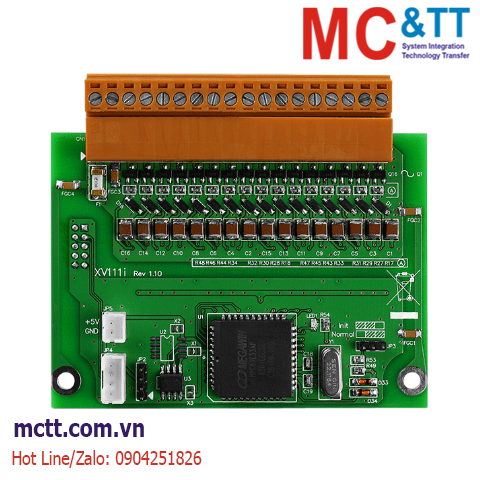

Card mở rộng 16 kênh đầu ra số DO ICP DAS XV111 CR
The XV111 provides 16 channels for digital output, each of which features photocouple isolation. The XV111 supports sink-type output with short circuit protection and provides options for configuring power-on digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The XV111A has the same specifications as the XV111, except that the output types are reversed.
Tính năng
- Sink-type Digital Output
- Configurable Power-on Value Settings
- Overvoltage Protection for Digital Output
- Short-circuit Protection for Digital Output
Thông số kỹ thuật
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact For Each Terminal
±8 kV Air For Random Terminal |
| Digital Output |
| Channels |
16 |
| Type |
Sink |
| Load Voltage |
3.5 ~ 50 VDC |
| Load Current |
600 mA/channel |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
Yes |
| Short-circuit Protection |
Yes |
| Power on Value |
Yes, Programmable |
| COM Ports |
| Ports |
1 x RS-232 |
| Baud Rate |
115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
Modbus/RTU |
| Power |
| Consumption |
0.2 W Max. |
| Powered from Terminal Block |
5 VDC |
| Mechanical |
| Dimensions (mm) |
59 mm x 82 mm x 13 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Thông tin đặt hàng
| XV111 CR |
16-ch Isolated DO (Sink, NPN, 3.5 ~ 50 VDC) Expansion Board (RoHS) |
