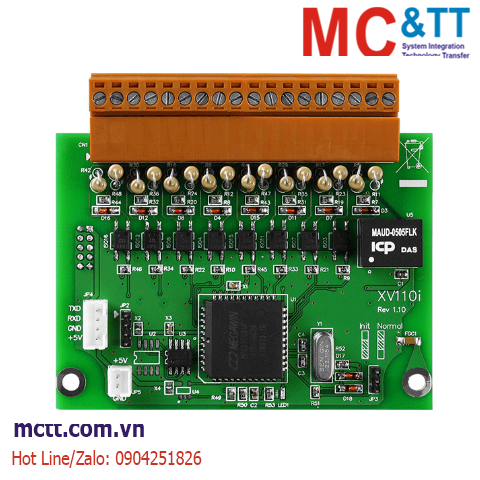

Card mở rộng 16 kênh đầu vào số DI ICP DAS XV110 CR
The XV110 provides 16 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters. All channels feature photocouple isolation, and can be used as 32-bit counters. In addition, either sink- or source-type digital input can be selected via wire connections. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.
Tính năng
- 16-channel Digital Inputs
- Dry and Wet Contact, Selectable via Wire Connections
- Long Effective Distance up to 500 meters for Dry Contact
- All Channels can be used as 32-bit Counters
- 70 VDC Overvoltage Protection for Digital Input
Thông số kỹ thuật
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact For Each Terminal
±8 kV Air For Random Terminal |
| Digital Input/Counter |
| Channels |
16 |
| Type |
Dry Contact,
Wet Contact |
| Sink/Source (NPN/PNP) |
Dry: Source
Wet: Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: +3.5 ~ 50 VDC |
| OFF Voltage Level |
Dry: Open
Wet: +1 VDC Max. |
| Max. Counts |
32-bit (0 ~ 4, 294, 967, 285) |
| Frequency |
50 Hz |
| Min. Pulse Width |
10 ms |
| Effective Distance |
500 m Max. |
| Input Impedance |
10 KΩ, 0.5 W |
| Overvoltage Protection |
70 VDC |
| COM Ports |
| Ports |
1 x RS-232 |
| Baud Rate |
115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
Modbus/RTU |
| Power |
| Consumption |
0.25 W Max. |
| Powered from Terminal Block |
5 VDC |
| Mechanical |
| Dimensions (mm) |
59 mm x 82 mm x 13 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Thông tin đặt hàng
| XV110 CR |
16-ch Isolated DI (Dry/Wet, 3.5 ~ 50VDC) Expansion Board (RoHS) |
