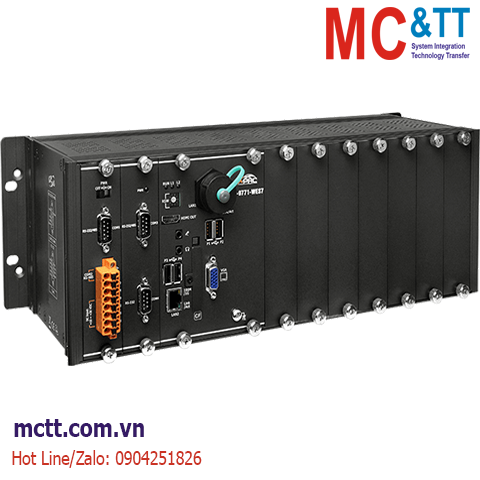

Bộ lập trình nhúng Windows PAC với CPU E3827 WES7 + 7 khe cắm module I/O ICP DAS XP-9771-WES7 CR
XP-9771-WES7 đã dừng sản xuất, thay thế và nâng cấp thành XP-9781-IoT
Features
• Windows Embedded Standard 7 SP1 x86 (32-bit)
• Intel® Atom™ E3827 1.75 GHz
• 2 GB DDR3 SDRAM
• 32 GB SSD
• VGA and HDMI Port Output
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input
Introduction
The XP-9771-WES7 are WES7 based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3827 CPU, 7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-9K and I-97K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules. Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based Panel PC.
Applications
https://mctt.vn/xp-9000-wes7-icp-das
Specifications
| Software |
| OS |
Windows Embedded Standard 7 SP1 x86 (32-bit) |
| Service |
IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support |
.Net Framework 3.5, 4.0, 4.5, 4.7 |
| Multilanguage Support |
English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net |
| Main Unit |
| CPU |
E3827, 1.75 GHz, 64-bit dual core |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
2 GB DDR3 SDRAM, 32 GB Flash |
| Storage |
32 GB SSD, 16 GB CF card |
| Non-Volatile Memory |
128 KB MRAM, 16 KB EEPROM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Signal |
VGA, HDMI |
| Resolution |
1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) |
| LED Indicators |
| Status |
1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion |
| I/O Type |
I-9K, I-97K series |
| Slots |
7 |
| COM Ports |
| Ports |
1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| Audio |
| Jack |
Microphone-in and Earphone-out |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Base-TX |
| Power |
| Capacity |
4.0 A, 5 V supply to CPU and backplane, 3.0 A, 5 V supply to I/O expansion slots, 35 W in total |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption |
18 W (0.75 A @ 24 VDC) |
| Mechanical |
| Dimensions (mm) |
422 x 164 x 133 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| XP-9771-WES7 CR |
7-slot Metal Standard PAC with E3827 CPU and WES7 (RoHS) |
