Bộ lập trình nhúng Win-GRAF PAC CPU x86 + WinCE 6.0 ICP DAS XP-8038-CE6 CR

Chia sẻ:
Mã sản phẩm: XP-8038-CE6
Thương hiệu: ICP DAS
Tình trạng:

0-slot Win-GRAF Based PAC with x86 CPU and WinCE 6.0

Liên hệ
Mô tả

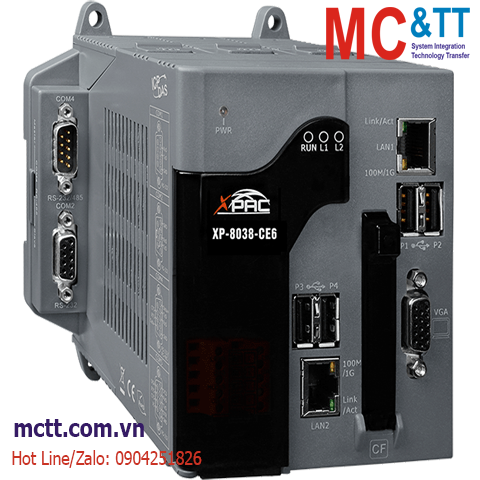

Bộ lập trình nhúng Win-GRAF PAC CPU x86 + WinCE 6.0 ICP DAS XP-8038-CE6 CR

Features

• x86 CPU, 1.0 GHz, dual-core
• Windows CE 6.0
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• VGA Port Output
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI
• Redundant Power Inputs
• Support Dual-PAC Redundant System

Introduction

The Win-GRAF XPAC-8000-CE6 Series (XP-8038-CE6/XP-8138-CE6/XP-8338-CE6/XP-8738-CE6) is the new generation WinCE 6.0 based Win-GRAF XPAC (Programmable Automation Controller) from ICP DAS. Each is equipped with an x86 CPU (1 GHz) dual-core running a Windows CE 6.0 operating system, a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and a range of I/O slots (0/1/3/7) that can be used to integrate high-performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series).

The benefits of running Windows CE 6.0 on an XPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The PACs are capable of running WinGRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.

Application

Specifications

Software
OS Windows CE 6.0
Protocol • NET ID
• Redundancy Solution
• eLogger HMI
• Modbus TCP/IP Master
• Modbus TCP/IP Slave
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O
• Application Protection
• Data Binding
• On Line Change
• HART Master Protocol
• Schedule Control
• Retain Variables
• File Access and Data Log
Development Embedded Win-GRAF SoftLogic (IEC 61131-3)
Service FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5
Framework Support .Net Compact Framework 3.5
Multilanguage Support English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese
SDK Dll for eVC, Dll for Visual Studio.Net 2005/2008
Main Unit
CPU x86 CPU, 1.0 GHz, dual-core
64-bit Hardware Serial Number Yes
System Memory 2 GB DDR3 SDRAM
Storage 32 GB Flash, 8 GB CF card (up to 32 GB)
Non-Volatile Memory 16 KB EEPROM, 512 KB MRAM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Signal VGA
Resolution 640 × 480, 800 × 480, 800 × 600, 1024 × 768
LED Indicators
Status 1 x System, 1 x Power, 2 x Programmable
COM Ports
Ports 3 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485
HMI
Buzzer Yes
Rotary Switch Yes, (0 ~ 9)
Audio
Jack Microphone-in and Earphone-out
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports 4 x USB 2.0
Power
Input Range +10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs Yes
Consumption 12.0 W
Mechanical
Casing Plastic
Dimensions (mm) 137 x 132 x 125 (W x L x H)
Installation DIN-Rail, Wall mounting
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

XP-8038-CE6     CR  0-slot Win-GRAF Based PAC with x86 CPU and WinCE 6.0 (RoHS)
