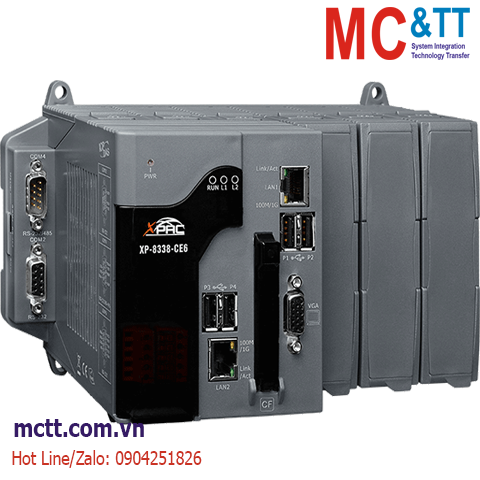

Bộ lập trình nhúng Win-GRAF PAC CPU x86 + WinCE 6.0 + 3 khe cắm module I/O ICP DAS XP-8338-CE6 CR
Features
• x86 CPU, 1.0 GHz, dual-core
• Windows CE 6.0
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• VGA Port Output
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI
• Redundant Power Inputs
• Support Dual-PAC Redundant System
Introduction
The Win-GRAF XPAC-8000-CE6 Series (XP-8038-CE6/XP-8138-CE6/XP-8338-CE6/XP-8738-CE6) is the new generation WinCE 6.0 based Win-GRAF XPAC (Programmable Automation Controller) from ICP DAS. Each is equipped with an x86 CPU (1 GHz) dual-core running a Windows CE 6.0 operating system, a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and a range of I/O slots (0/1/3/7) that can be used to integrate high-performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series).
The benefits of running Windows CE 6.0 on an XPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The PACs are capable of running WinGRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.
Application
Specifications
| Software |
| OS |
Windows CE 6.0 |
| Protocol |
• NET ID
• Redundancy Solution
• eLogger HMI
• Modbus TCP/IP Master
• Modbus TCP/IP Slave
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O
• Local I/O Modules
• Application Protection
• Data Binding
• On Line Change
• HART Master Protocol
• Schedule Control
• Retain Variables
• File Access and Data Log |
| Development |
Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service |
FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5 |
| Framework Support |
.Net Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for eVC, Dll for Visual Studio.Net 2005/2008 |
| Main Unit |
| CPU |
x86 CPU, 1.0 GHz, dual-core |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
2 GB DDR3 SDRAM |
| Storage |
32 GB Flash, 8 GB CF card (up to 32 GB) |
| Non-Volatile Memory |
16 KB EEPROM, 512 KB MRAM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Signal |
VGA |
| Resolution |
640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators |
| Status |
1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
3 |
| COM Ports |
| Ports |
2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes, (0 ~ 9) |
| DIP Switch |
8-bit for address |
| Audio |
| Jack |
Microphone-in and Earphone-out |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Power |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs |
Yes |
| Consumption |
16.8 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
231 x 132 x 125 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| XP-8338-CE6 CR |
3-slot Win-GRAF Based PAC with x86 CPU and WinCE 6.0 (RoHS) |
