Module 2 cổng RS-232 (3-Pin) + 4 kênh DI + 4 kênh DO ICP DAS X509 CR

Chia sẻ:
Mã sản phẩm: X509
Thương hiệu: ICP DAS
Tình trạng:

2-Port RS-232 (3-Pin), 4-channel D/I and 4-channel D/O

Liên hệ
Mô tả

Module 2 cổng RS-232 (3-Pin) + 4 kênh DI + 4 kênh DO ICP DAS X509 CR

The X-board series are for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EG, I-7188EX and uPAC-7186EX Series (uPAC-7186EX, uPAC-7186PEX, uPAC-7186EG, uPAC-7186EX-FD,  uPAC-7186EX-SM).

Above one µPAC can plug only one X-board.

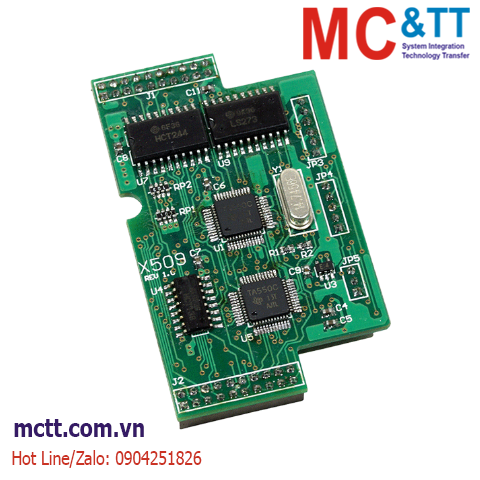

X509 is a 2-Port Non-Isolation 3-wire RS-232 and 4-channel Non-Isolation Digital Input and 4-channel Non-Isolation Digital Output X-board for I-7188XB, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX Series.

Tính năng

  • 2-Port Non-Isolation 3-wire RS-232
  • 4-channel Non-Isolation Digital Input
  • 4-channel Non-Isolation Digital Output

Thông số kỹ thuật



Digital Input
Channels 4
Type Wet Contact
ON Voltage Level +3.5V ~ +30VDC
OFF Voltage Level +1V Max.
Digital Output
Channels 4
Load Voltage ≤ +30 VDC
Load Current 100 mA
Isolation None
COM Ports
Ports 2 x 3-wire RS-232 (TxD, RxD, GND)
Baud Rate 115200 bps Max.
1200 ~ 115200 bps
10 k, 20 k, 50 k, 125 k , 250 kbps , 500 k, 800 k, 1M
125 k, 250 k, 500 k
FIFO Size 16 bytes
Power
Consumption 0.7 W
Mechanical
Dimensions (mm) 38 mm x 64 mm
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 5 ~ 90 %, Non-condensing

Thông tin đặt hàng

X509  CR  2-Port RS-232 (3-Pin), 4-channel D/I and 4-channel D/O (RoHS)
