Module 4 cổng RS-232 (5-Pin) + 1 kênh DI + 2 kênh DO ICP DAS X520 CR
The X-board series are for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EG, I-7188EX and uPAC-7186EX Series (uPAC-7186EX, uPAC-7186PEX, uPAC-7186EG, uPAC-7186EX-FD, uPAC-7186EX-SM).
Above one µPAC can plug only one X-board.

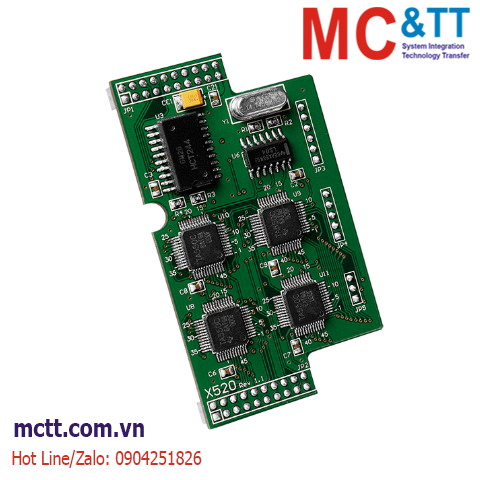

X520 is a 4-Port Non-Isolation 3-wire RS-232 and 1-channel Non-Isolation Digital Input and 2-channel Non-Isolation Digital Output X-board for I-7188XB, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX Series.
Tính năng
- 4-Port Non-Isolation 3-wire RS-232 and 1-channel Non-Isolation Digital Input and 2-channel Non-Isolation Digital Output
Thông số kỹ thuật
| Digital Input |
| Channels |
1 |
| Type |
Dry Contact |
| Sink/Source (NPN/PNP) |
Source |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Digital Output |
| Channels |
2 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink(NPN) |
| Load Voltage |
+5 ~ +30 VDC |
| Load Current |
100 mA |
| Isolation |
None |
| COM Ports |
| Ports |
4 x 3-wire RS-232 (TxD, RxD, GND) |
| Baud Rate |
115200 bps Max.
1200 ~ 115200 bps
10 k, 20 k, 50 k, 125 k , 250 kbps , 500 k, 800 k, 1M
125 k, 250 k, 500 k |
| FIFO Size |
16 bytes |
| Mechanical |
| Dimensions (mm) |
38 mm x 64 mm |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
5 ~ 90 %, Non-condensing |
Thông tin đặt hàng
| X520 CR |
4-port RS-232 (3-Pin), 1-ch D/I and 2-ch D/O (RoHS) |
