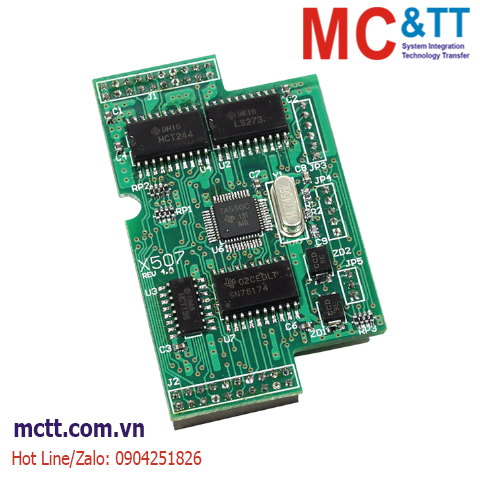

Module 1 cổng RS-422/485 + 4 kênh DI + 4 kênh DO ICP DAS X507 CR
The X-board series are for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EG, I-7188EX and uPAC-7186EX Series (uPAC-7186EX, uPAC-7186PEX, uPAC-7186EG, uPAC-7186EX-FD, uPAC-7186EX-SM).
Above one µPAC can plug only one X-board.
X507 is a 1-Port Non-Isolation RS-422/485 and 4-channel Non-Isolation Digital Input and 4-channel Non-Isolation Digital Output X-board for I-7188XB, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX Series.
Tính năng
- 1-Port Non-Isolation RS-422/485 and 4-channel Non-Isolation Digital Input and 4-channel Non-Isolation Digital Output
Thông số kỹ thuật
| COM Ports |
| Ports |
1 x RS-422 (TxD+, TxD-, RxD+, RxD-)/
1 x RS-485 (TxD+, TxD-) |
| Baud Rate |
115200 bps Max.
1200 ~ 115200 bps
10 k, 20 k, 50 k, 125 k , 250 kbps , 500 k, 800 k, 1M
125 k, 250 k, 500 k |
| FIFO Size |
16 bytes |
| Mechanical |
| Dimensions (mm) |
38 mm x 64 mm |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
5 ~ 90 %, Non-condensing |
Thông tin đặt hàng
| X507 CR |
1-Port RS-422/485, 4-channel D/I and 4-channel D/O (RoHS) |
