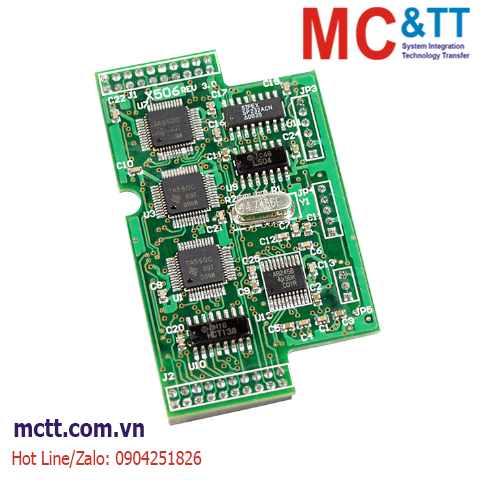

Module 6 cổng RS-232 (3-Pin) ICP DAS X506 CR
The X-board series are for I-7188XA, I-7188XB, I-7188XC, I-7188XG, I-7188EG, I-7188EX and uPAC-7186EX Series (uPAC-7186EX, uPAC-7186PEX, uPAC-7186EG, uPAC-7186EX-FD, uPAC-7186EX-SM).
Above one µPAC can plug only one X-board.
X506 is a 6-Port Non-Isolation 3-wire RS-232 X-board for I-7188XB, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX Series.
Tính năng
- 6-Port Non-Isolation 3-wire RS-232
Thông số kỹ thuật
| COM Ports |
| Ports |
6 x 3-wire RS-232 (TxD, RxD, GND) |
| Baud Rate |
115200 bps Max.
1200 ~ 115200 bps
10 k, 20 k, 50 k, 125 k , 250 kbps , 500 k, 800 k, 1M
125 k, 250 k, 500 k |
| FIFO Size |
16 bytes |
| Mechanical |
| Dimensions (mm) |
38 mm x 64 mm |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
5 ~ 90 %, Non-condensing |
Thông tin đặt hàng
| X506 CR |
6-Port RS-232 (3-Pin) (RoHS) |
