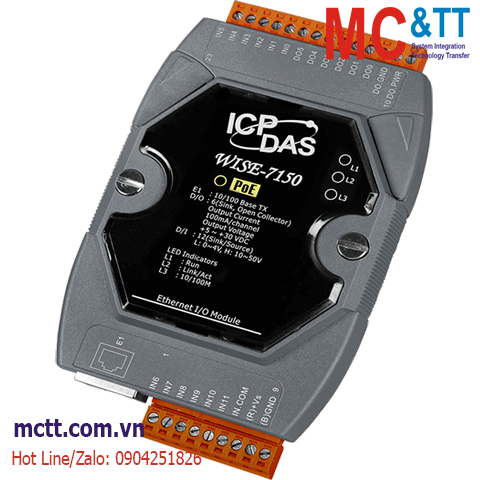

Module lập trình nhúng Wise IoT 12 kênh DI + 6 kênh DO ICP DAS WISE-7150 CR
Feature
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Built-in I/O (DI: 12-channels; DO: 6-channels).
- Support I/O channel monitoring/control, Timer operations.
- Support non-SSL Email sending and CGI Command sending operations.
- Modbus TCP Protocol for SCADA System Integration.
- IEEE 802.3af-compliant Power over Ethernet (PoE).
Introduction
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.
WISE-7150 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7150 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.
This module WISE-7150 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 6-channel isolated open collector outputs and 12-channel isolated wet contact digital inputs. Each output channel supports 100 mA currnet driving @ 5 ~ 30 VDC and each digital input channel supports counter input.
Application
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.
More detailed application case, you can find on here.
Specifications
| Software |
| Protocol |
• Modbus TCP
• CGI Command (Sending) |
| Function |
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation (36 rule supported)
• I/O channel monitoring and control
• Timer operation (12 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (12 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function |
| CPU Module |
| CPU |
16-bit CPU (80 MHz) |
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each terminal and ±8 kV Air for random point |
| LED Indicators |
| Status |
1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
1 x Ethernet 10/100M Speed |
| Digital Input/Counter |
| Channels |
12 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+10 VDC ~ +50 VDC |
| OFF Voltage Level |
+4 VDC Max. |
| Max. Counts |
16-bit (65535) |
| Frequency |
50 Hz |
| Min. Pulse Width |
10 ms |
| Input Impedance |
10 kΩ |
| Overvoltage Protection |
+70 VDC |
| Digital Output |
| Channels |
6 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+5 VDC ~ +30 VDC |
| Load Current |
100 mA/Channel at 25 °C
Direct Drive Power Relay Module |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
1.3 A |
| Short-circuit Protection |
Yes |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100 Base-TX and automatic MDI/MDI-X |
| PoE |
Yes |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
12 ~ 48 VDC |
| Consumption |
2.4 W |
| Powered from PoE |
Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block |
Yes, 12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
72 x 123 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting/Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| WISE-7150 CR |
Intelligent I/O Module with 12-ch DI, 6-ch DO and PoE (RoHS) |
